This article details improvements in diagnostic software versions NEH, NVH, and NWH, enhancing fault code searching with user-controlled retries, clearer OBD-II icon displays, and result retention. It improves battery check warnings, function execution history, trigger alarm clarity, and adds high voltage safety guidance. VCI interface now supports list selection and one-click switching, with exit confirmation added to navigation.
This article provides the following content:
This article applies to the following users:
Those who using diagnostic SW version: NEH, NVH, NWH
How to check and update the diagnostic app (GDS Smart) version
Improvements by Feature
1) Fault Code Searching, Smart Diagnosis, OBD-II

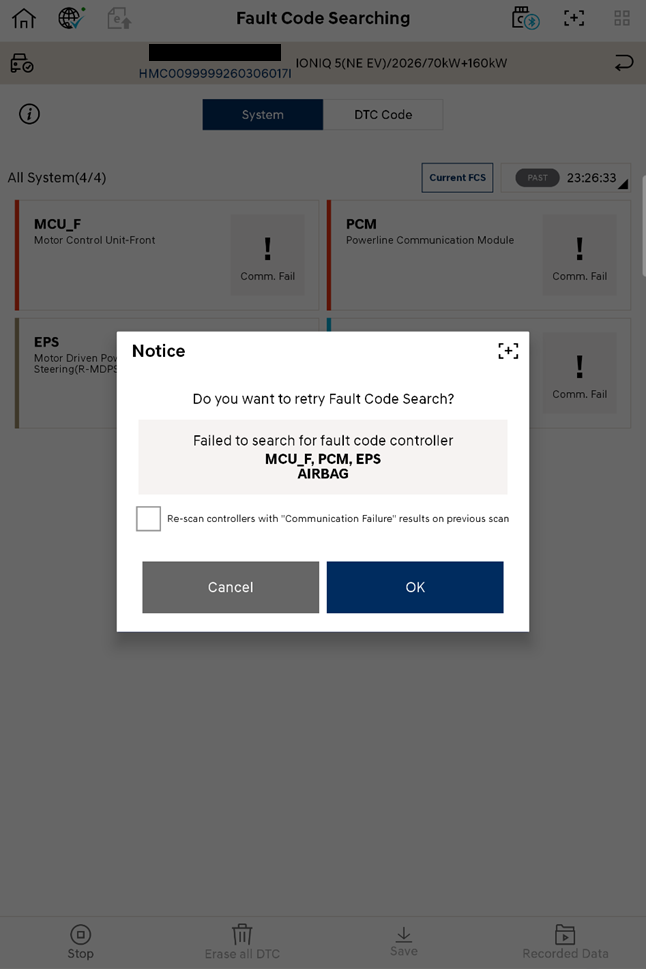

1-1. Diagnostic Speed Improvement
- Current: Increased time due to automatic retry of control units when fault code search fails
-
Improvement: User can choose whether to retry
There are two cases in which a communication failure pop-up may appear.
1) When the ECU that failed to communicate does not actually exist in the vehicle.
2) When performing a DTC search in 'Fast FCS', some ECUs do not support the 'Fast FCS' function, which may cause a communication failure pop-up as the image below. In this case, normal communication may be possible by running DTC Search in normal mode ━ select the checkbox shown in the image below and then click the OK button).
1-2. OBD-II Icon Display ━ 'Completed', 'Not Completed', 'Not Applicable'
- Current: Text-based results with low visibility
- Improvement: Three types of icons ━ 'Completed', 'Not Completed', 'Not Applicable' ━ applied for clear status distinction
1-3. Fault Code Result Retention | 🗗To see the function more
- Current: Results reset when moving between functions
- Improvement: Previous results can be reused → Allows comparison before and after maintenance
1-4. CAN Network Topology
- Current: Vertical UI makes overall network understanding difficult
- Improvement: Supports horizontal mode and zoom, displaying similar to actual wiring
2) S/W Management · Actuation

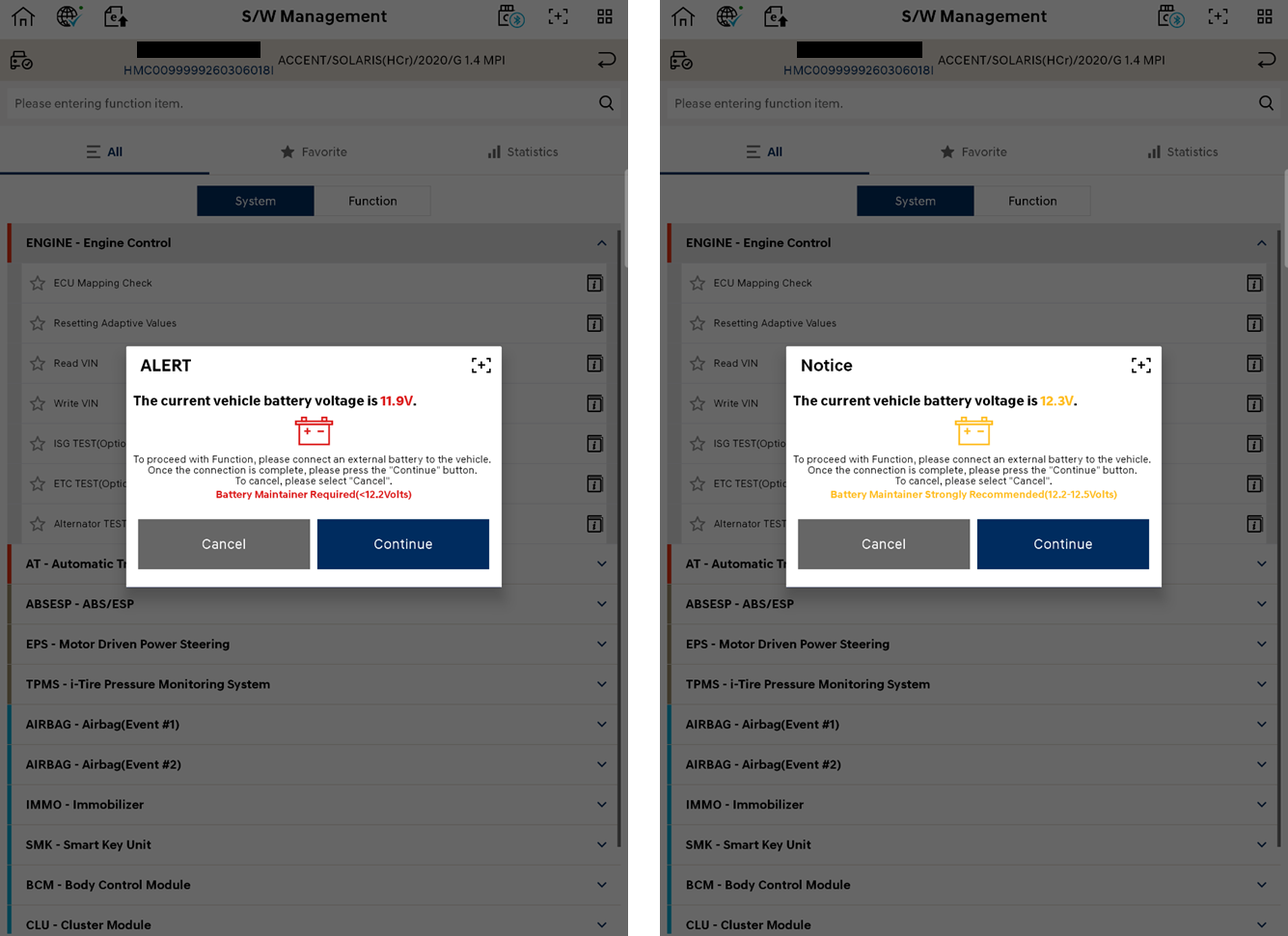

2-1. 12V Battery Check
- Current: No low voltage guidance.
- Improvement: Discharge warning popup with figures and colors indicators for functions that require long diagnostics.
Red: Not enough battery
Yellow: Operational, but caution is needed.

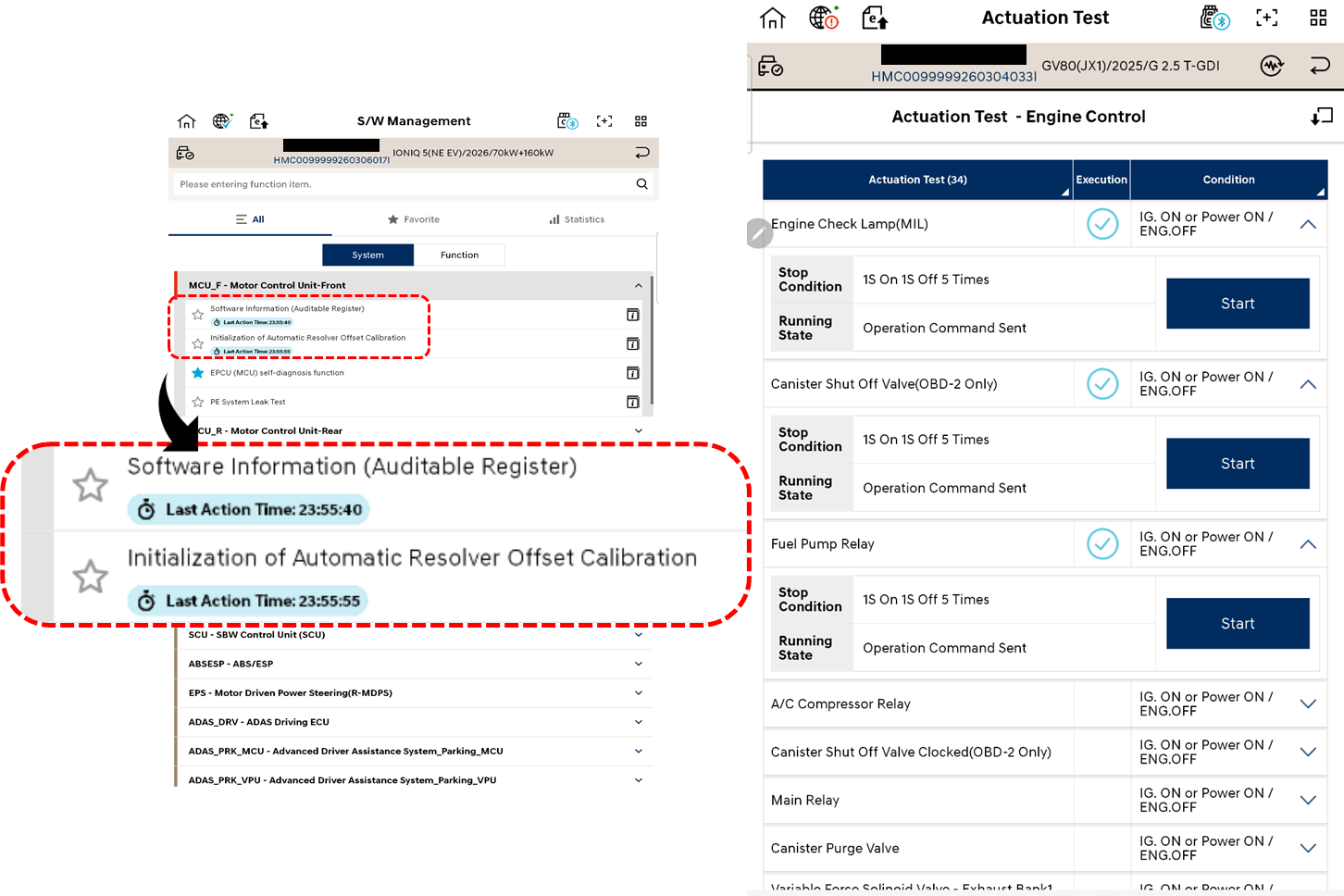

2-2. Function Execution History
- Current: Difficult to understand history due to text-based display
- Improvement: Displays last execution time and status icons
3) Data Analysis

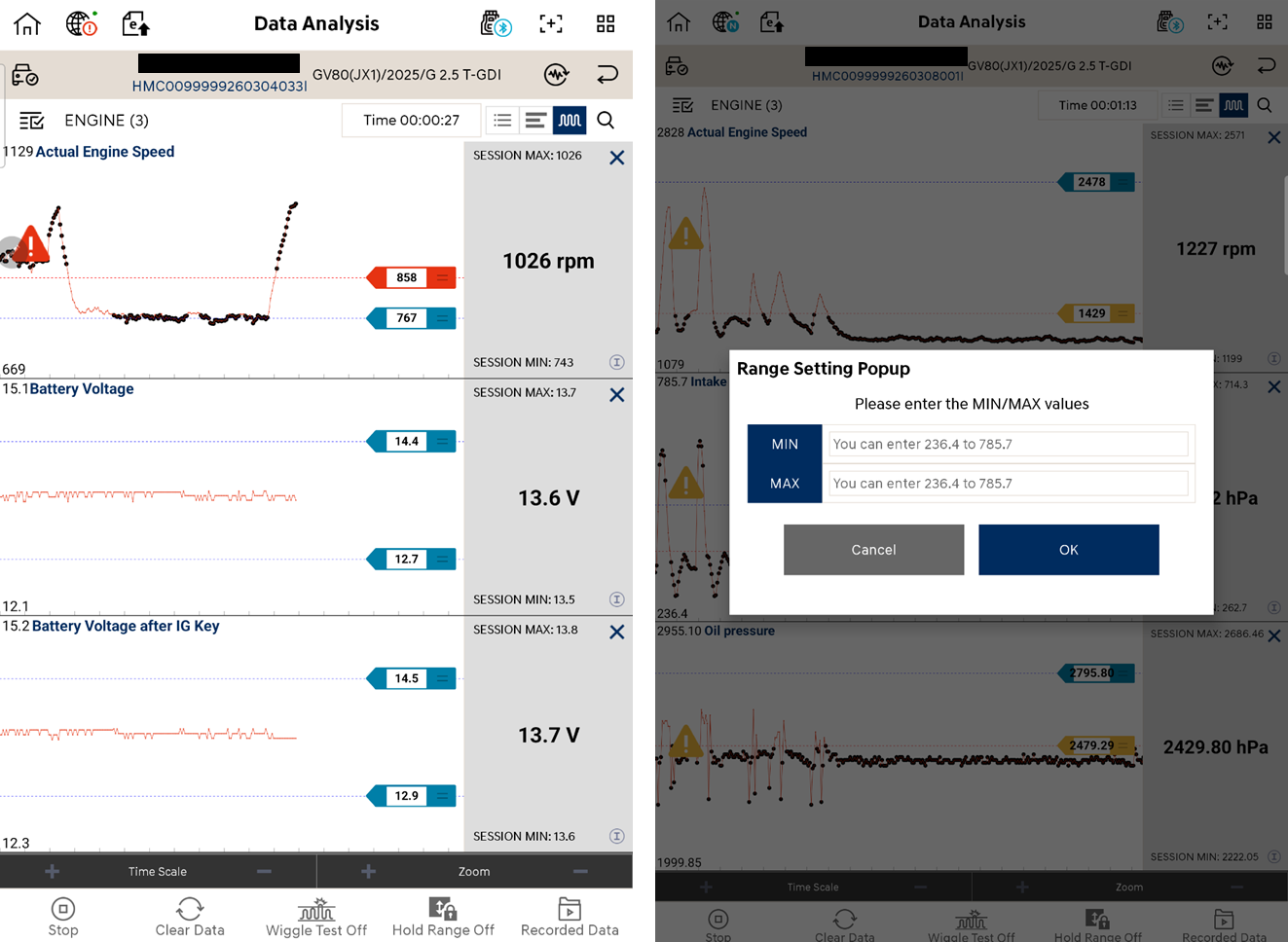

3-1. Trigger Alarm Improvement
- Current: Difficult to distinguish between maximum/minimum warnings
- Improvement: Differentiation by colour and warning sound, supports precise value input
4) Measurement – Oscilloscope

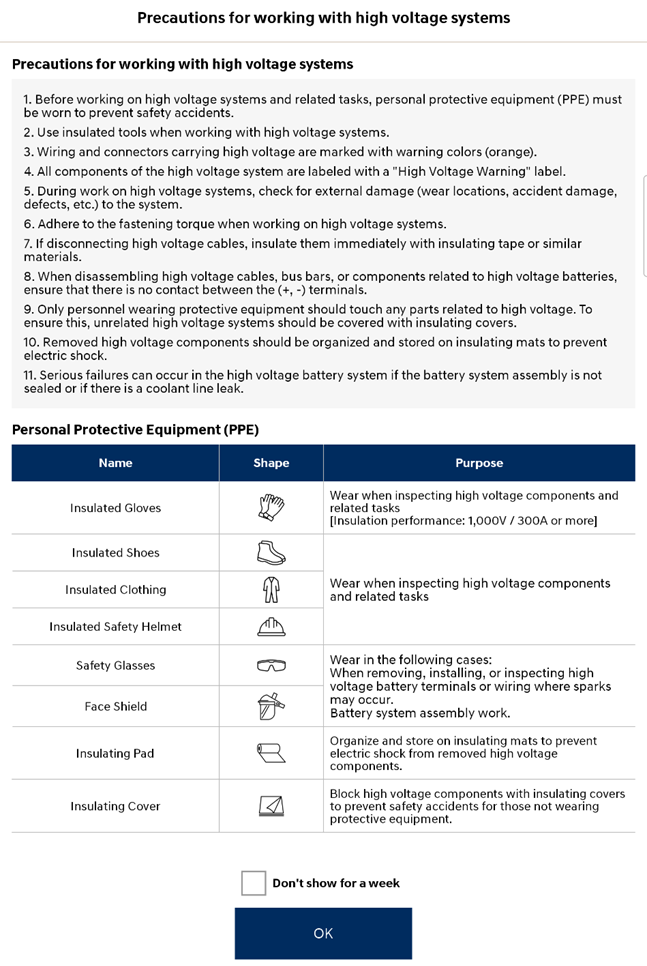

4-1. High Voltage Safety Guidance
- Current: No safety guidance provided
- Improvement: Added high voltage warning popup
5) Operating Environment – Device Connection · General

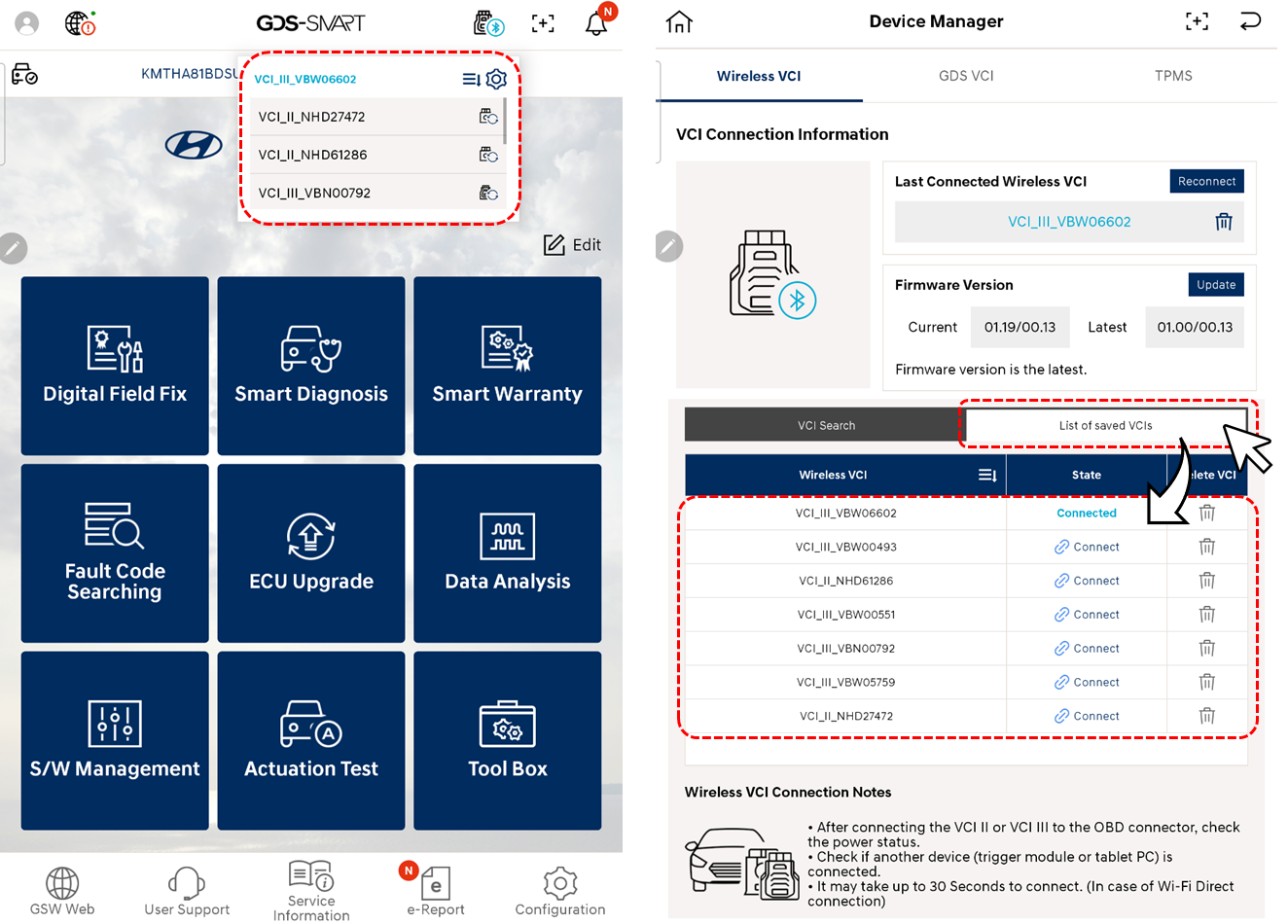

5-1. VCI Interface Improvement
- Current: Only last VCI2 and VCI3 auto-connect
- Improvement: Provides VCI list, one-click switching, and removal notification popup

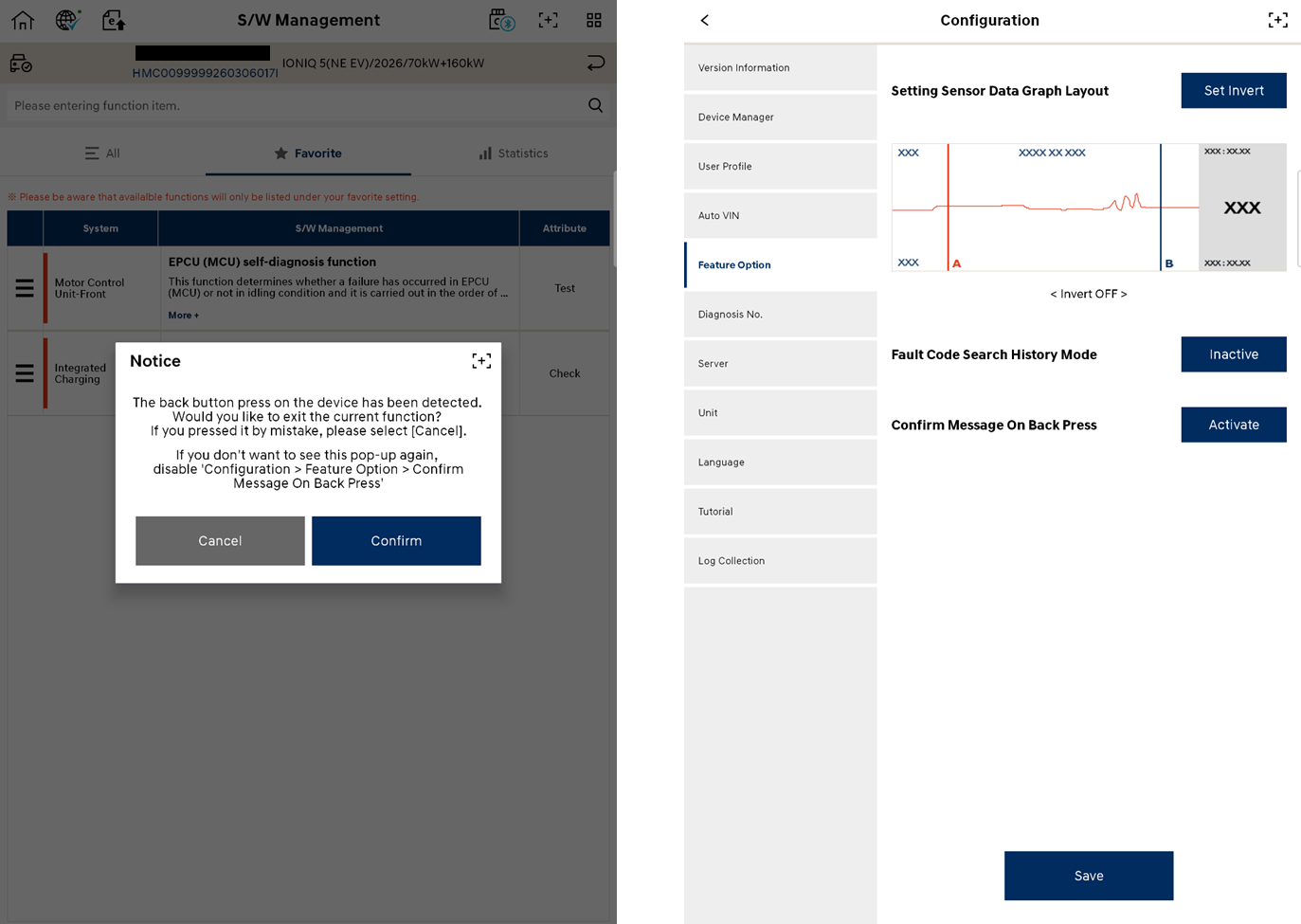

5-2. Back Navigation Message
- Current: Immediate exit upon back navigation
- Improvement: Added exit confirmation popup
