ECI Connection Guide.(Including Ethernet static IP setting method)

Avatar

Please see the ECI upgrade connection guide.

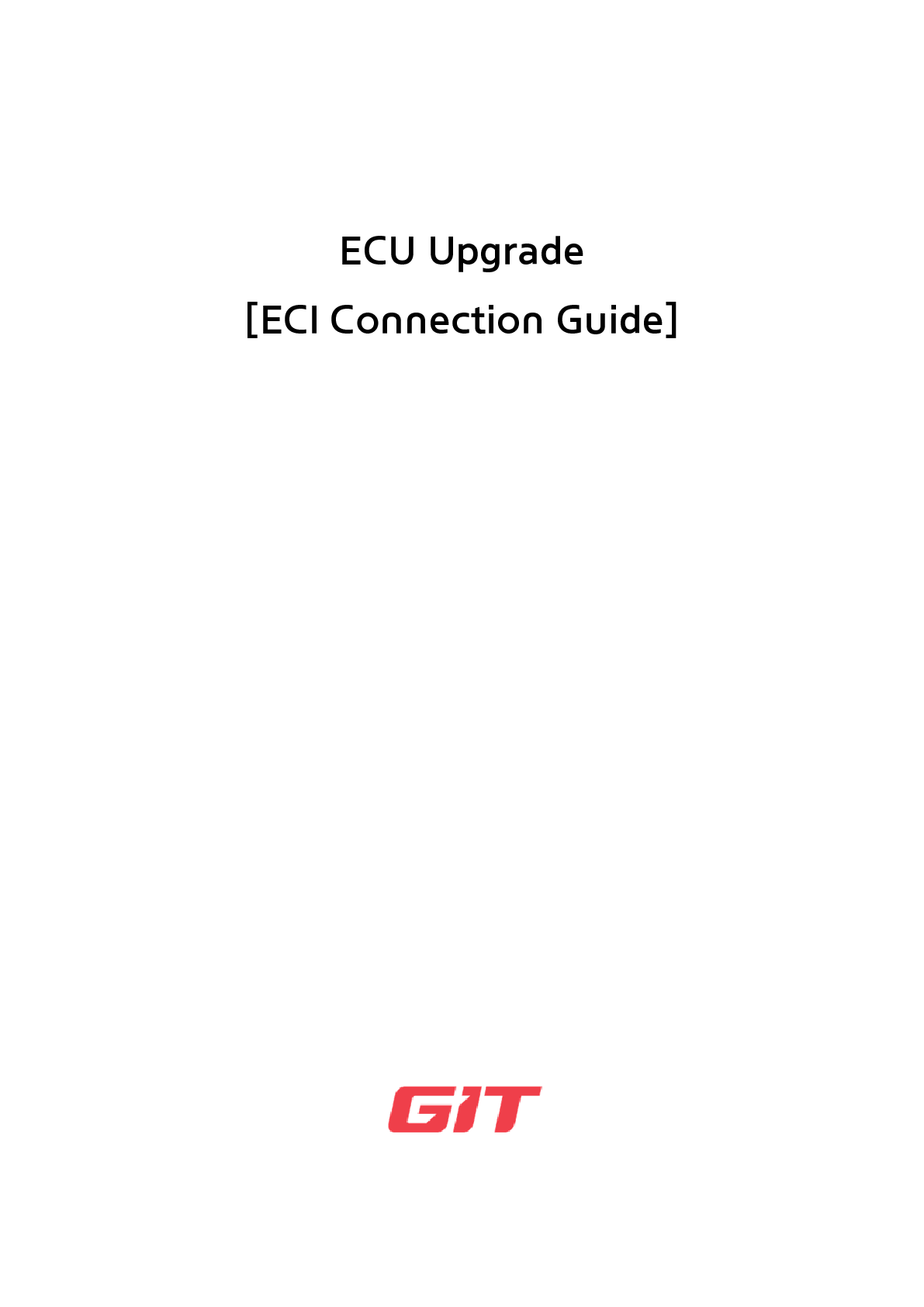

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_1.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_2.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_3.png

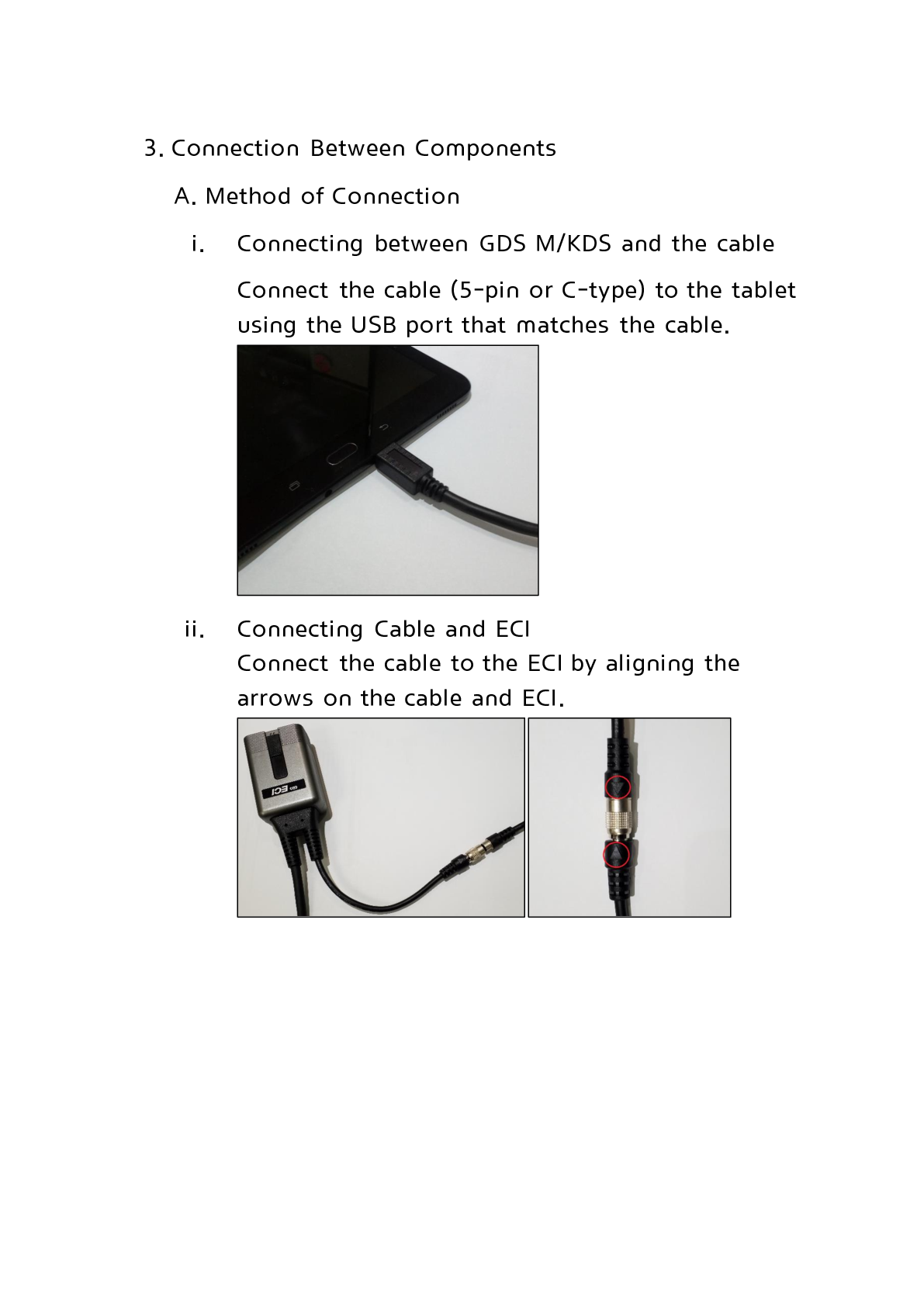

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_4.png

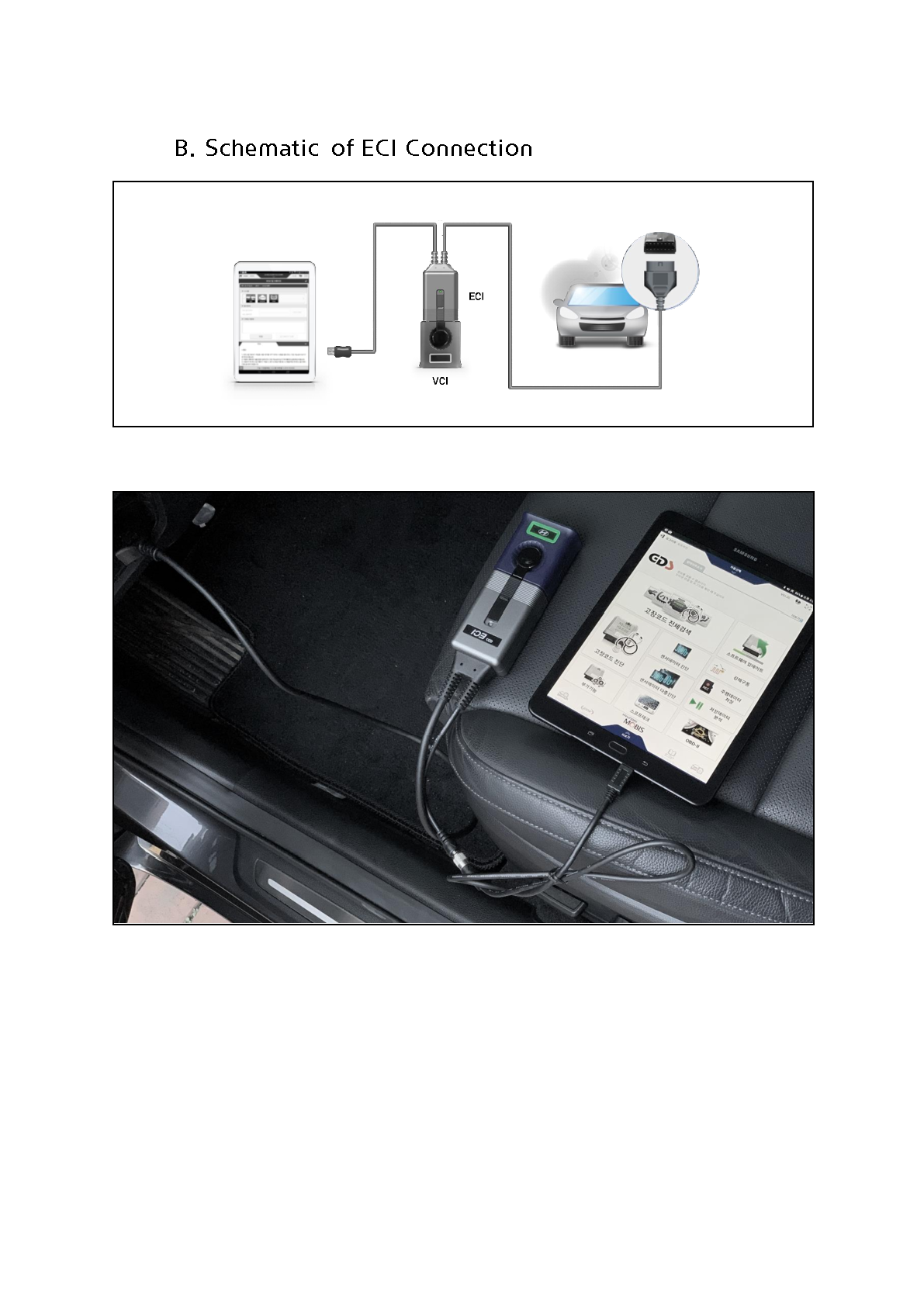

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_5.png

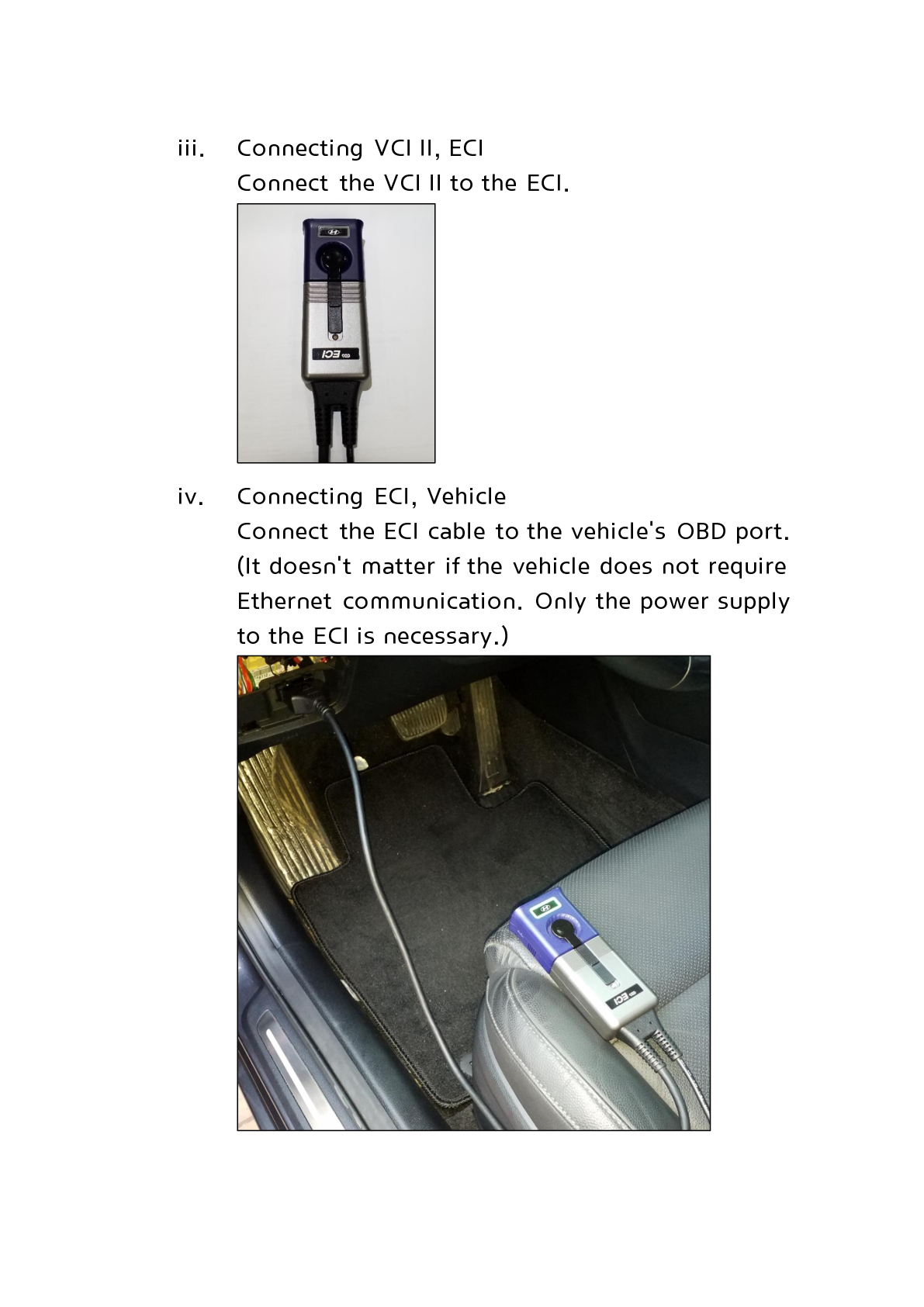

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_6.png

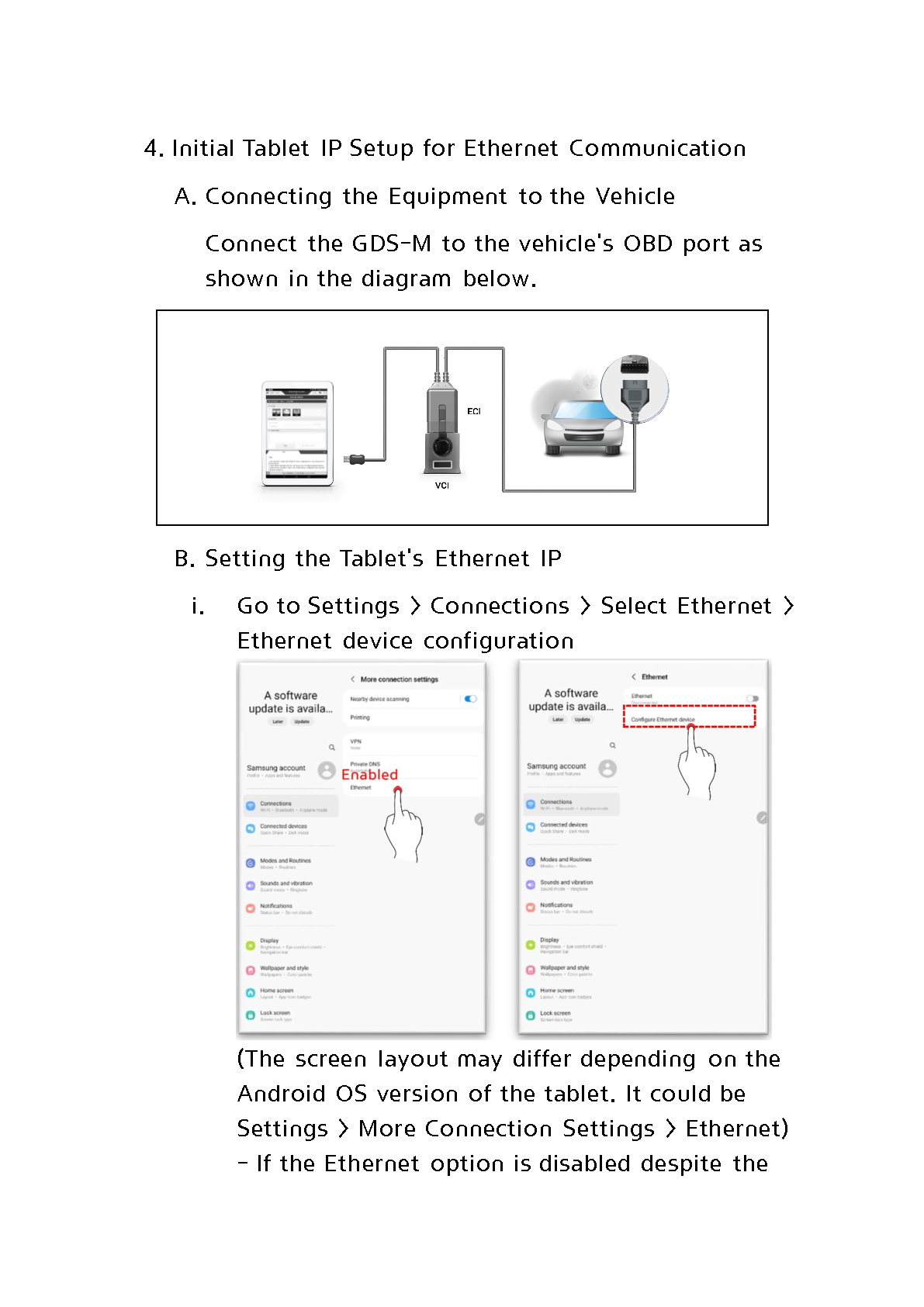

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_7.png

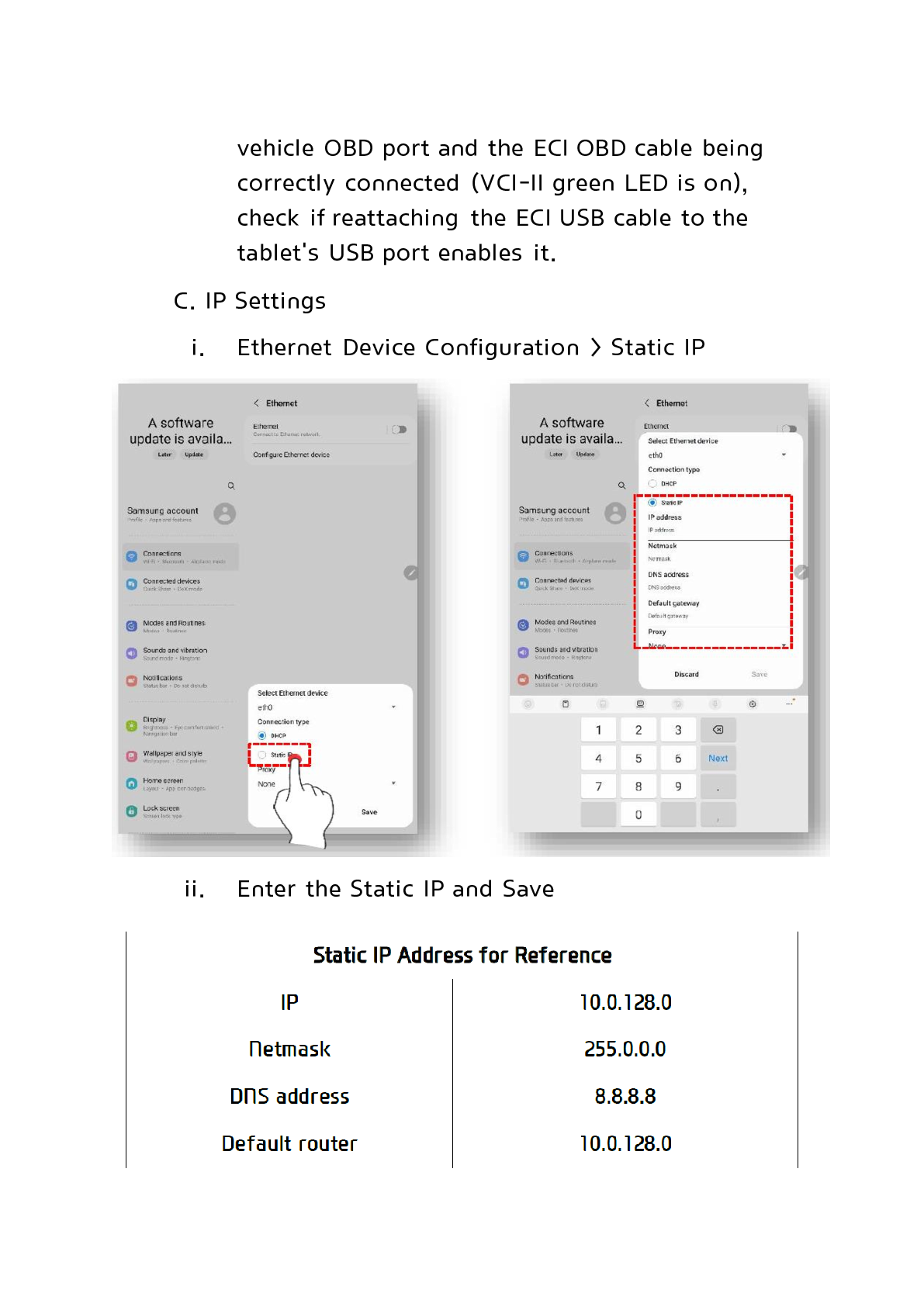

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_8.png
