This guide is exclusively for Hyundai Motor India (HMI) dealers and service personnel.This guide explains how to use the HMI eVHC (electronic Vehicle Health Check) system for DPDI (Digital PDI). It covers account registration via https://evhchyundai.in, downloading and installing the eVHC app on an Android tablet, and initiating Auto Check inspections for SA (through SA VHC on WA) and FI (through TC app). It also includes troubleshooting for the error screen after initial app download, and managing eVHC inspection results including viewing summaries and exporting data.
📑 Table of Contents
1. Registration
❓ How do I register for eVHC?
To register, visit https://evhchyundai.in, click [Register Your ID], select Dealer type, enter your WA account information, and submit your approval request. Follow Steps 1.1 – 1.6 below.
To register, visit https://evhchyundai.in, click [Register Your ID], select Dealer type, enter your WA account information, and submit your approval request. Follow Steps 1.1 – 1.6 below.

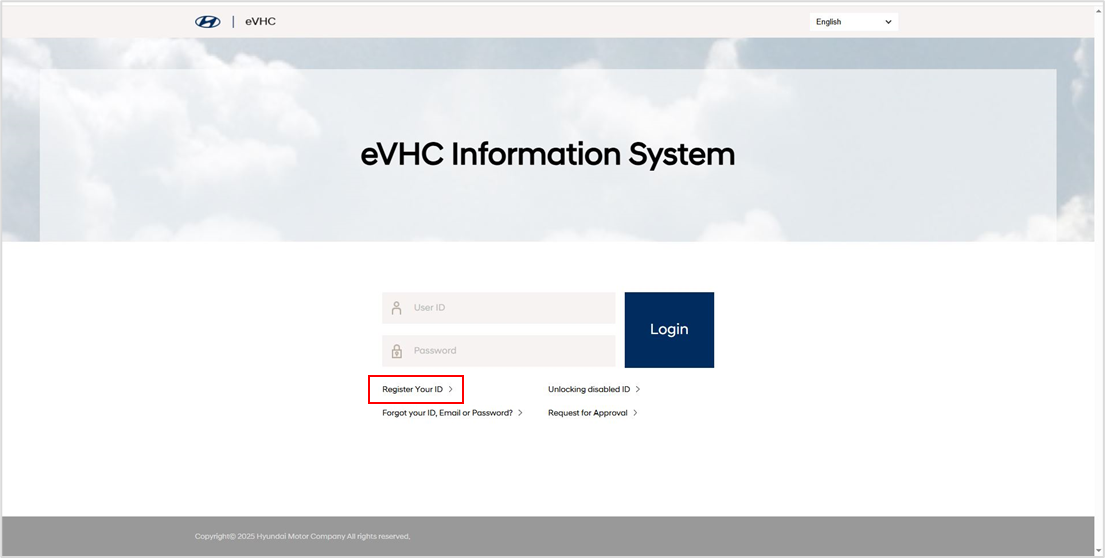

1.1. Account Registration – Register Your ID
- Go to web URL: https://evhchyundai.in
- Click [Register Your ID]

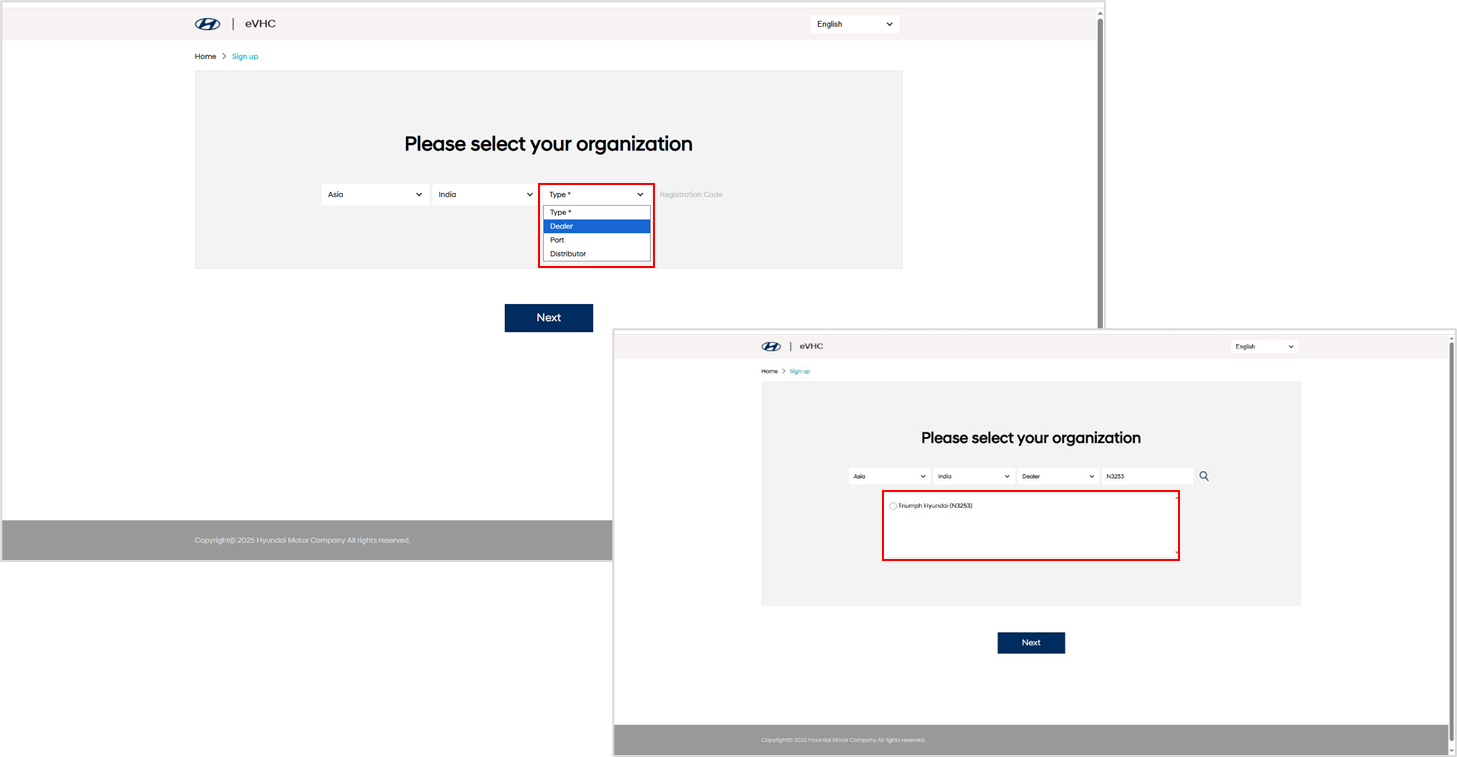

1.2. Account Registration – Select Dealer Type
- Select Type > Dealer
- Enter dealer code and select on the list
Note: Registration using WA account

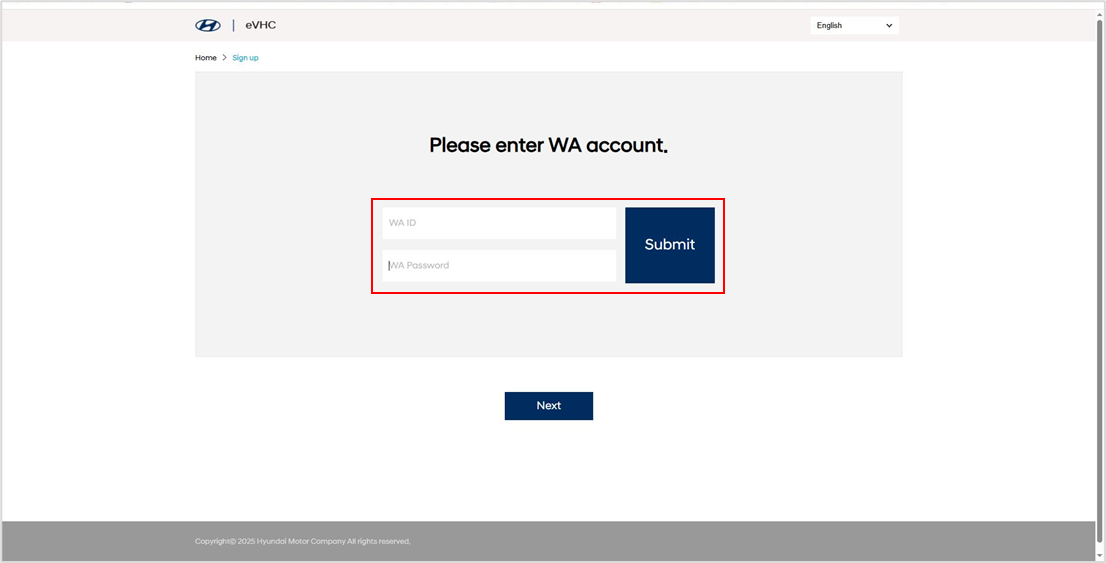

1.3. Account Registration – Enter WA Account Information
- Enter WA account information
- Press [Submit]
Note: Registration using WA account

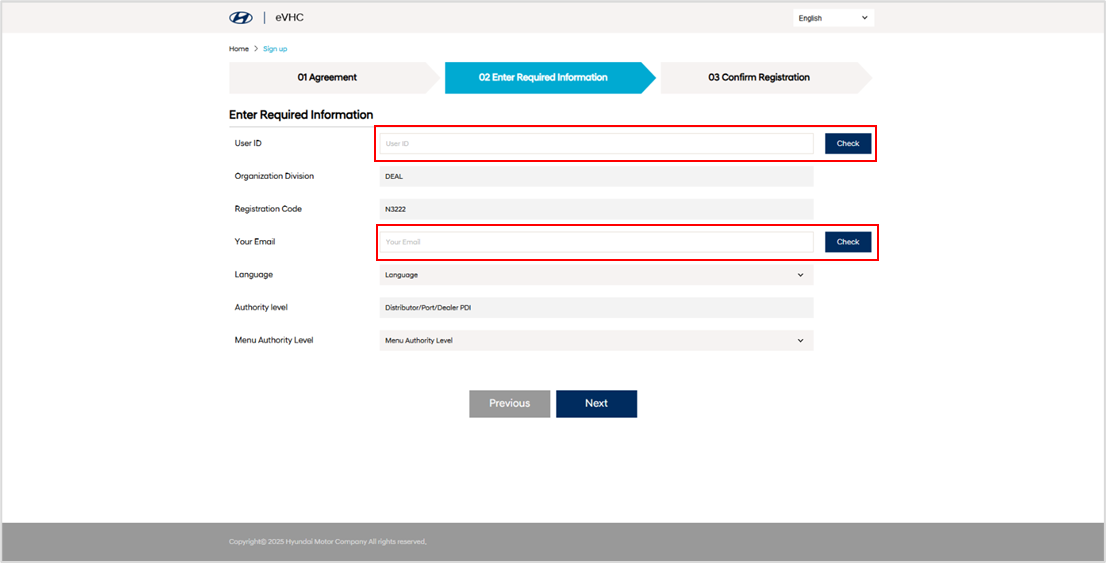

1.4. Account Registration – Enter Required Information
- Enter user ID and click [Check]
- Enter your email address and click [Check]

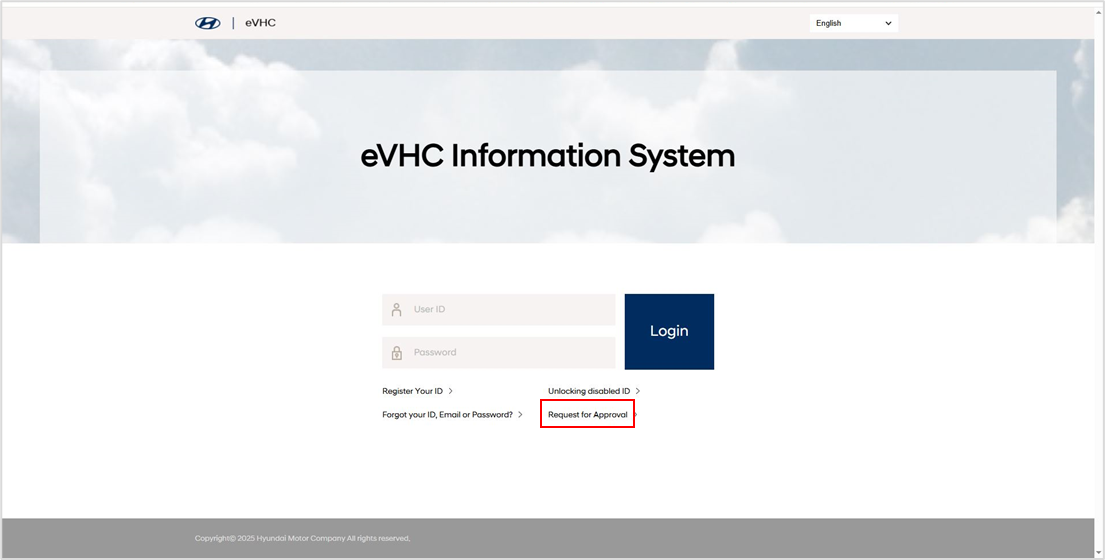

1.5. Account Registration – Request Approval
- Click [Request for Approval] on the main page

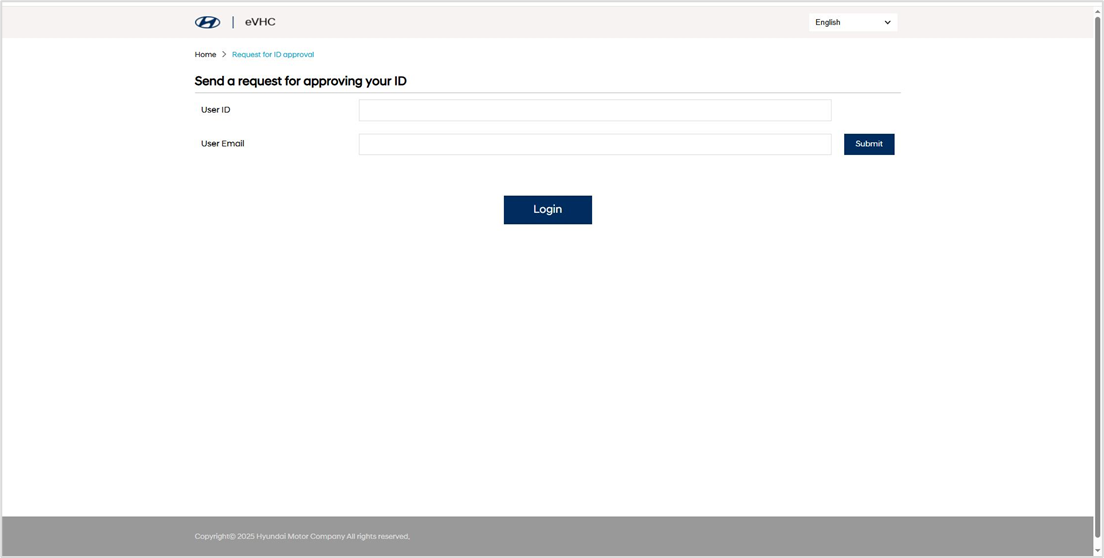

1.6. Account Registration – Submit Approval Request
- Fill in ID and your email address that you have entered for registration
- Press [Submit]
2. eVHC App Download
⚠ Important: Make sure you are using an Android tablet.
❓ How do I download the eVHC app?
Download the eVHC APK file from https://evhchyundai.in/ under System Management > Application Files. Install it on your Android tablet. If you see warning pop-ups, press [Download anyway] and [Install anyway] to continue.
Download the eVHC APK file from https://evhchyundai.in/ under System Management > Application Files. Install it on your Android tablet. If you see warning pop-ups, press [Download anyway] and [Install anyway] to continue.

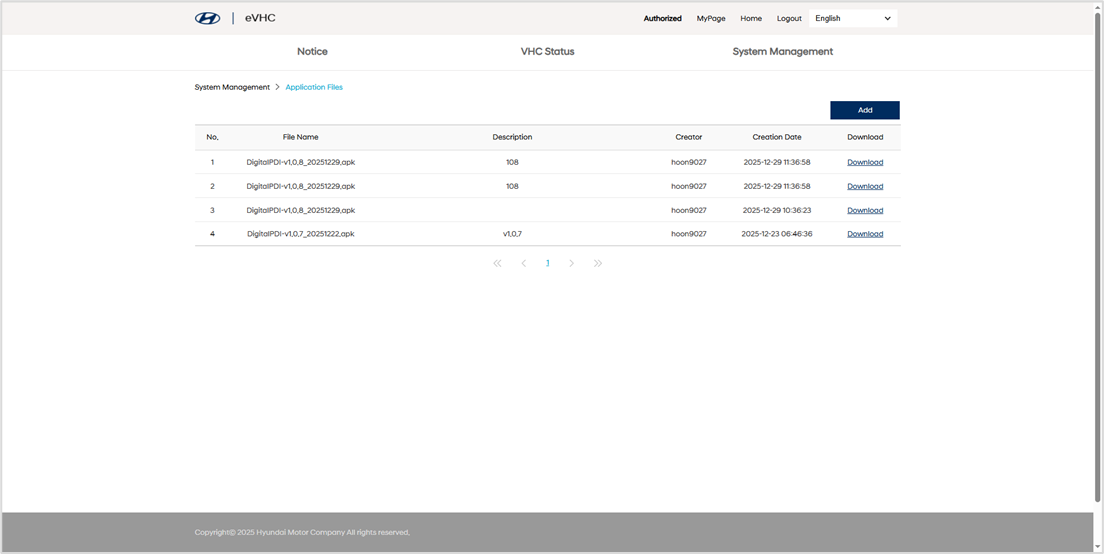

2.1. Download eVHC App
- To install eVHC app, you need to download apk file from eVHC website.
- URL: https://evhchyundai.in/
- Go to System Management > Application Files to download.
- Then apk file will download.

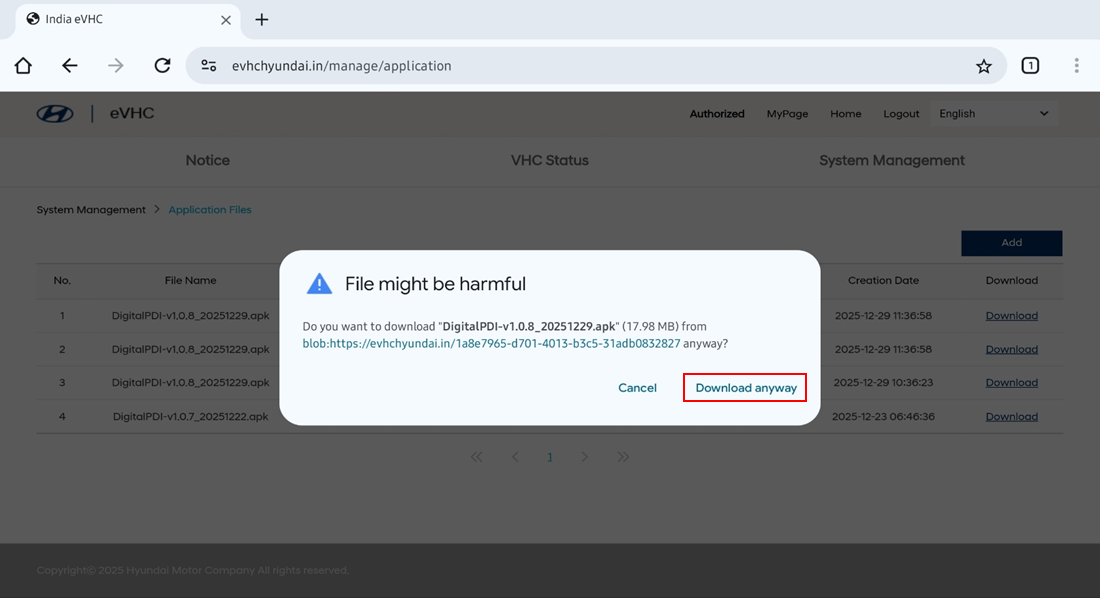

2.2. Handle "Harmful File" Pop-up
- If pop up appears notifying file maybe harmful, press [Download anyway] and continue

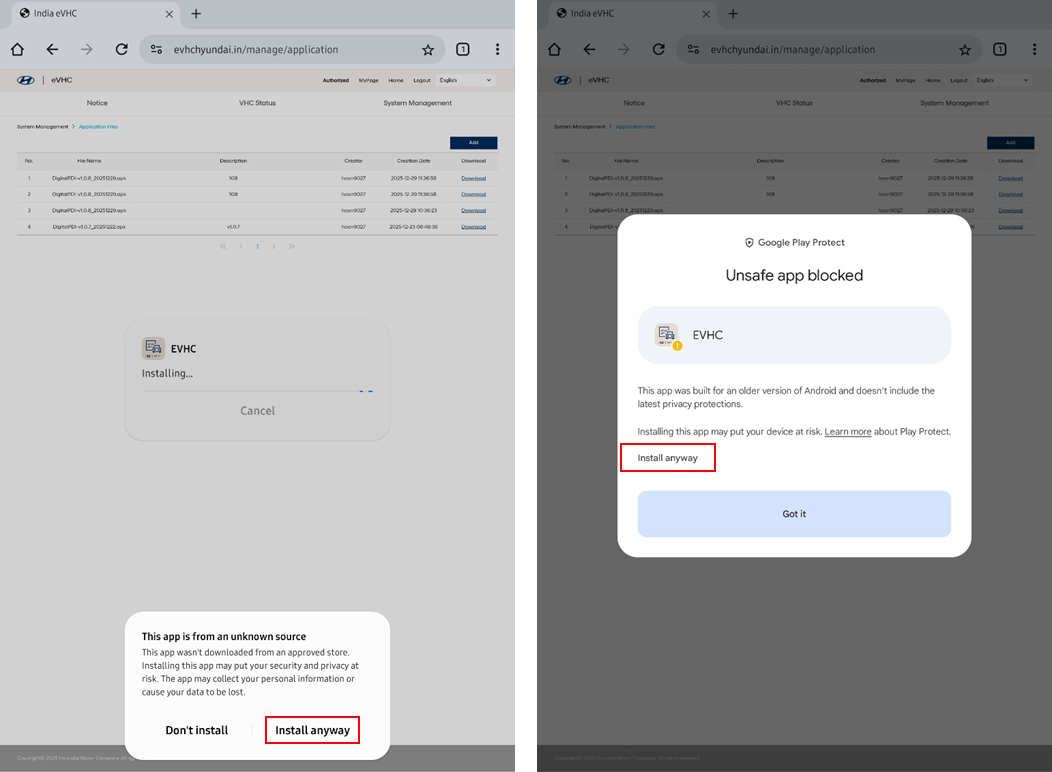

2.3. Handle "Unknown Source" Pop-up
- If pop up appears notifying unknown source, press [Install anyway] and continue

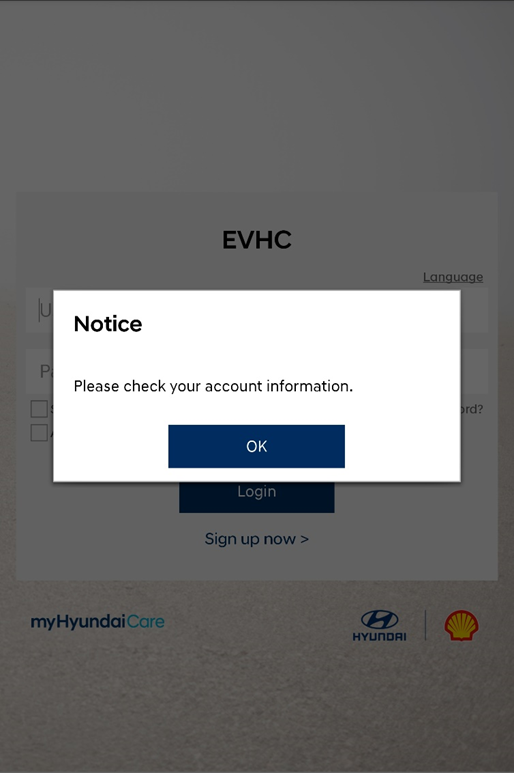

2.4. Error After Initial App Download – Use SA VHC to Access eVHC
❓ What should I do if the eVHC app shows an error screen after the first download?
This is expected behavior. The eVHC app cannot be launched directly – it is only accessible through the [SA VHC] function on WA. You must use the SA VHC menu on WA to initiate the eVHC Auto Check function.
This is expected behavior. The eVHC app cannot be launched directly – it is only accessible through the [SA VHC] function on WA. You must use the SA VHC menu on WA to initiate the eVHC Auto Check function.
- When running the app after initial download you may see the current error screen
- eVHC is only accessible through [SA VHC] function on WA
- Please use SA VHC menu on WA to initiate eVHC auto check function
3. eVHC Inspection for SA
❓ How do I run an eVHC inspection as an SA?
After creating an RO, go to [SA VHC] and press [eVHC] button. Select the correct module, and the VIN and odometer will be populated automatically. The app will then run the Auto Check function.
After creating an RO, go to [SA VHC] and press [eVHC] button. Select the correct module, and the VIN and odometer will be populated automatically. The app will then run the Auto Check function.

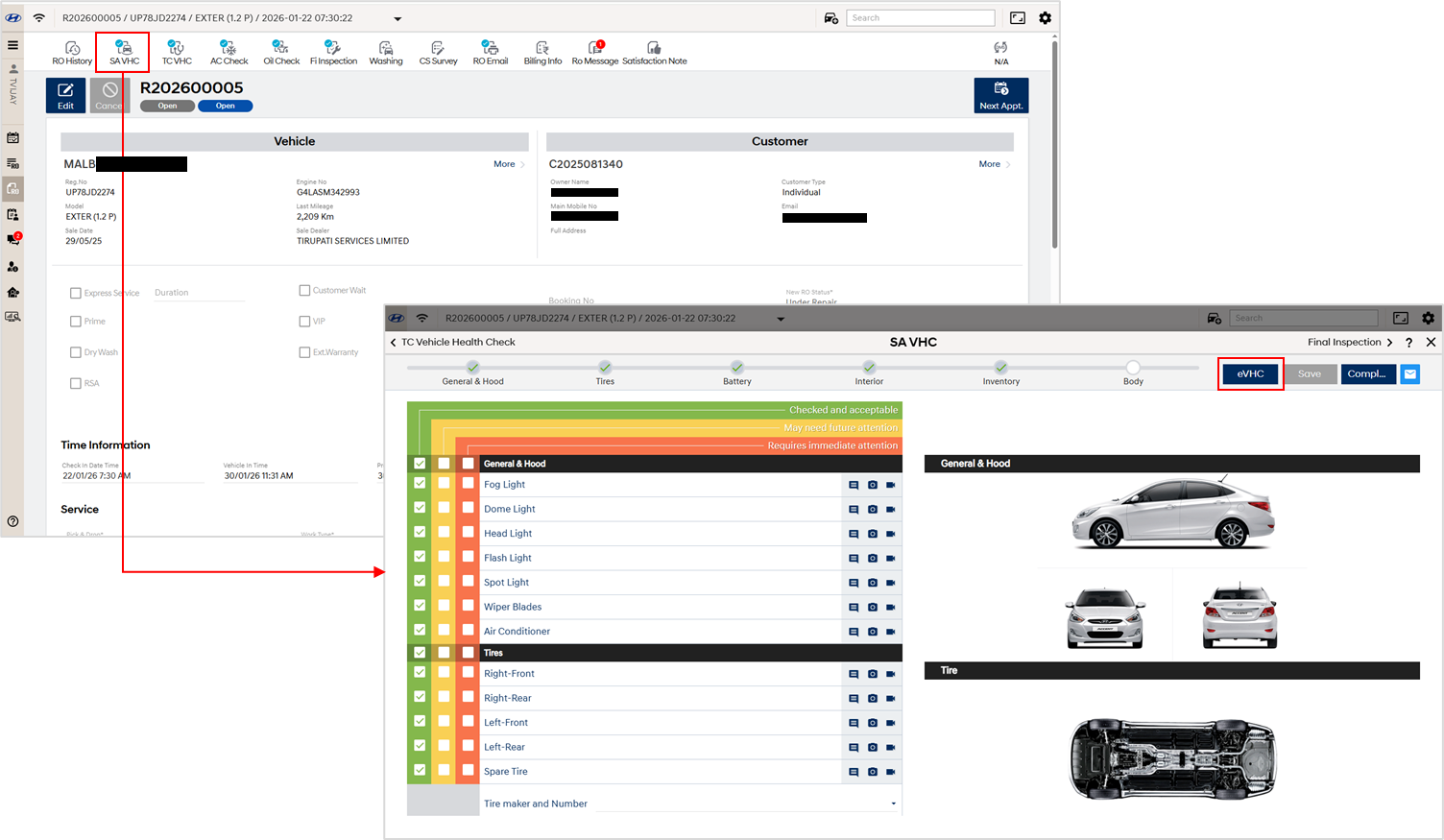

3.1. Initiate eVHC Inspection through SA VHC
- After creating RO go to [SA VHC]
- Press [eVHC] button to initiate eVHC inspection

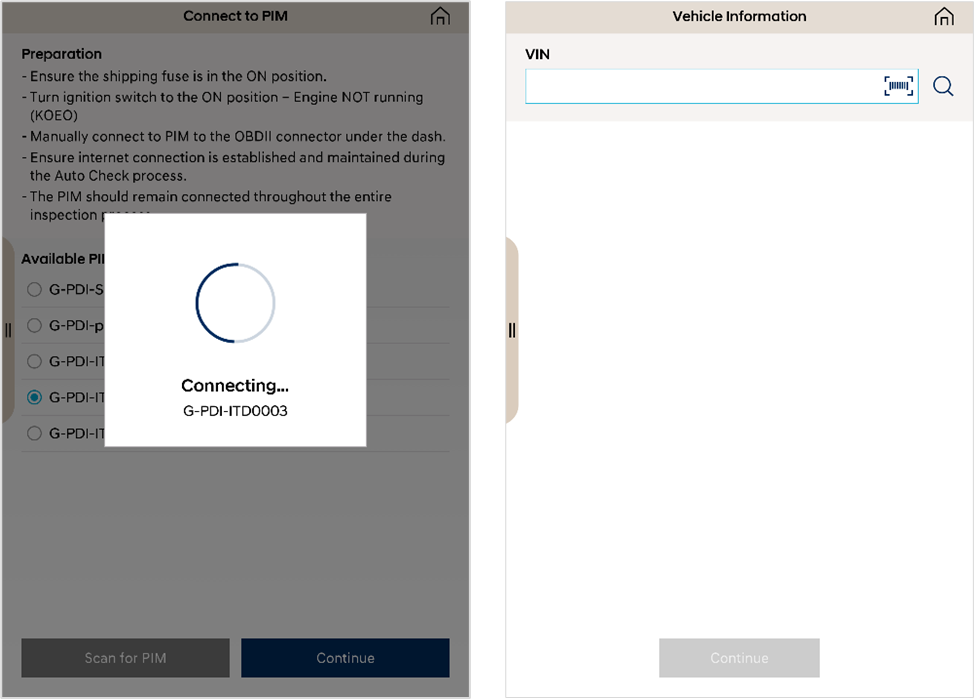

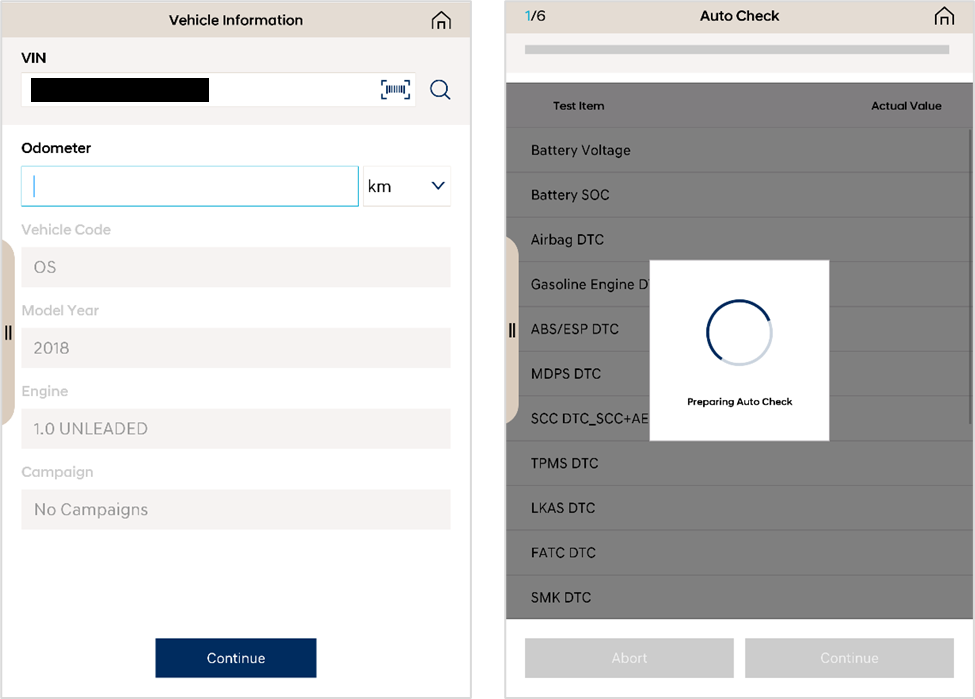

3.2. Module Selection and Vehicle Information
- The eVHC app will move straight to module selection screen
- Choose the correct module and press [Continue]
- After the module is connected, the VIN will be populated automatically
- After checking vehicle information press [Continue]
- Once module is connected, the odometer will also be populated automatically
- The app will automatically run the Auto Check function

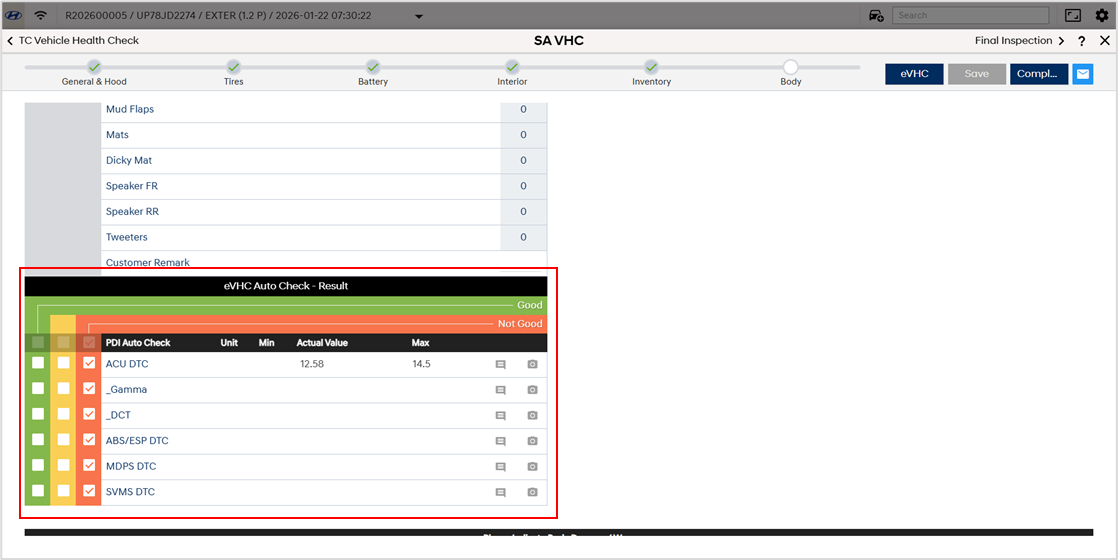

3.3. Check eVHC Result
- Your eVHC auto check result will appear on SA VHC screen
4. eVHC Inspection for FI
ℹ Note: TC app is available on Google Playstore.
❓ How do I run an eVHC inspection as an FI?
Select eVHC on the TC app (available on Google Playstore). After running the eVHC Auto Check process, the result will appear as a pop-up. Final Inspection results will then be displayed on WA.
Select eVHC on the TC app (available on Google Playstore). After running the eVHC Auto Check process, the result will appear as a pop-up. Final Inspection results will then be displayed on WA.

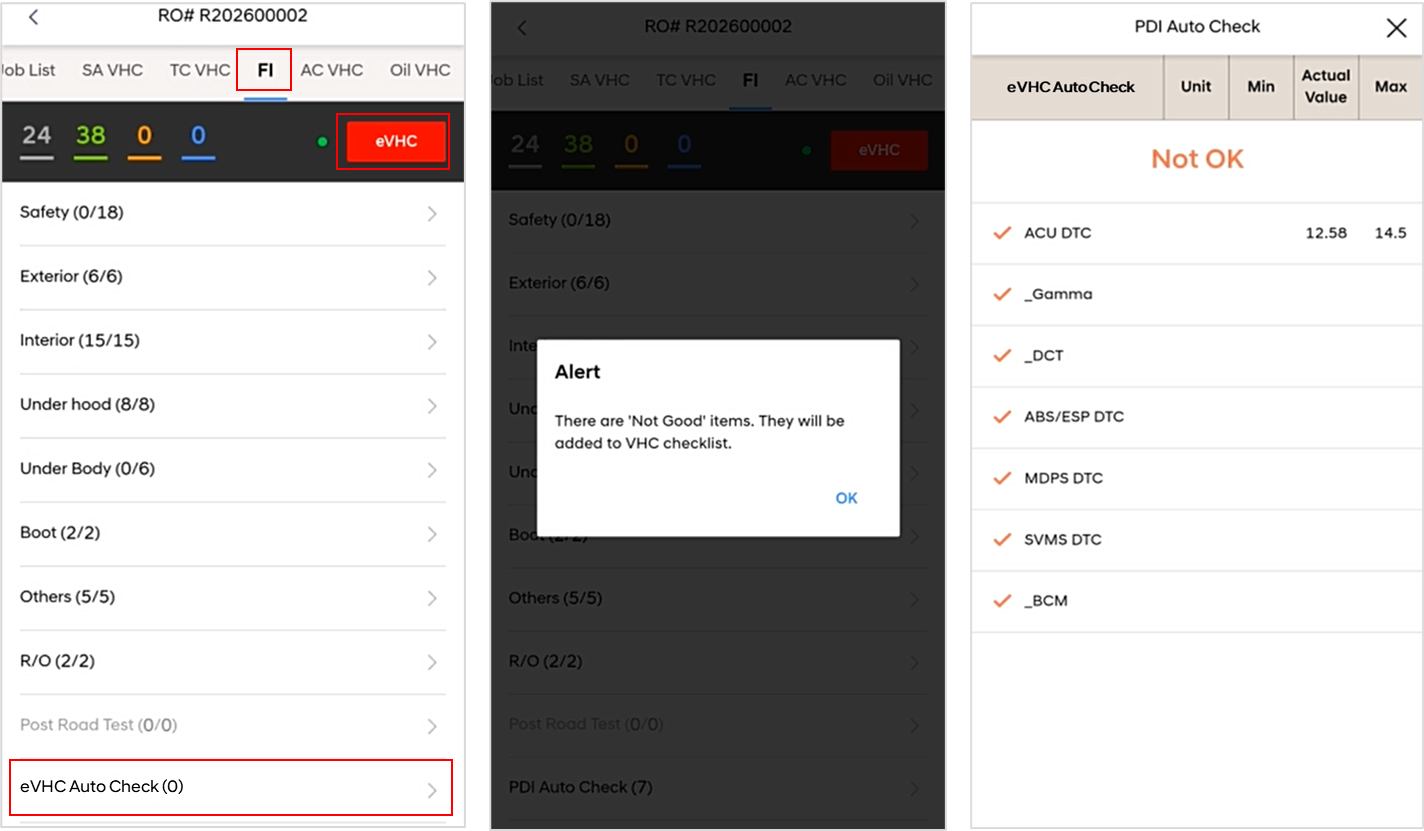

4.1. Initiate eVHC Inspection through TC App
- Select eVHC on TC app
- After running eVHC Auto Check process result pop up will be displayed

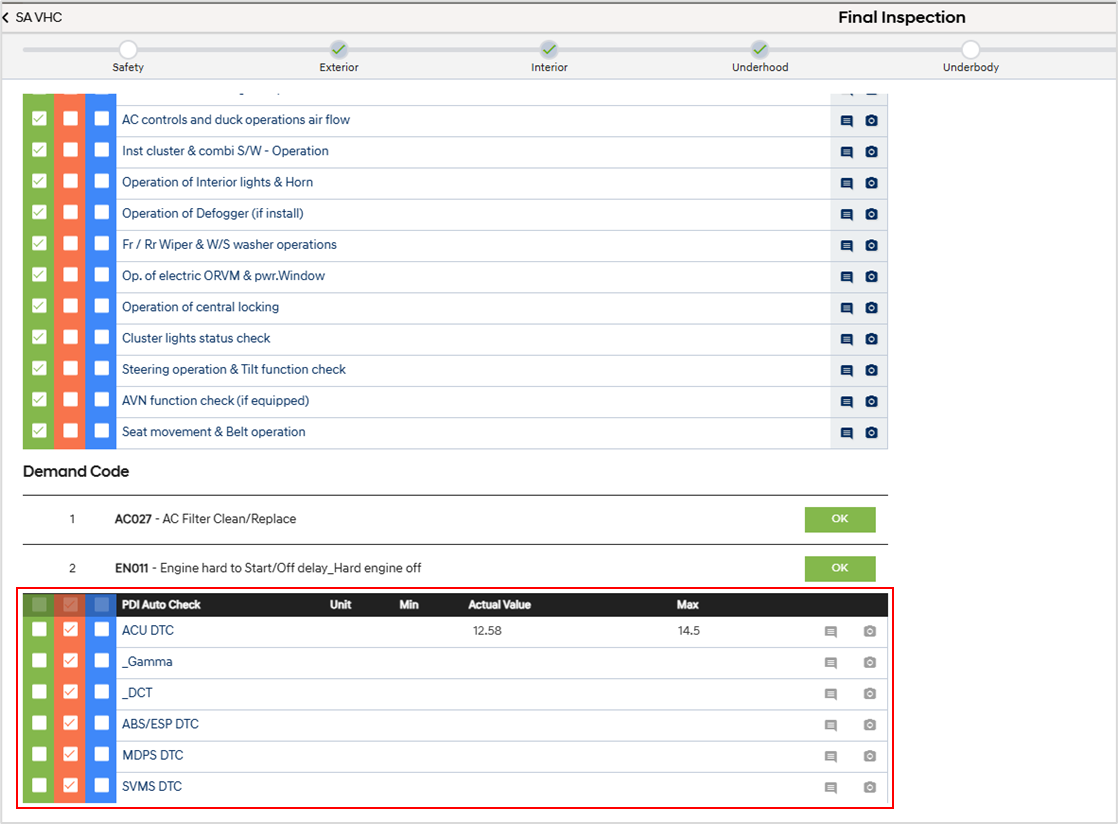

4.2. View Final Inspection Results
- Final Inspection results will be displayed on WA
5. eVHC Result Management
❓ How can I check and export eVHC inspection results?
Go to the VHC Status page on the eVHC management website. You can view the total number of inspections, filter by date, click on a VIN for detailed results, and use the export function to extract data to a documentation format.
Go to the VHC Status page on the eVHC management website. You can view the total number of inspections, filter by date, click on a VIN for detailed results, and use the export function to extract data to a documentation format.

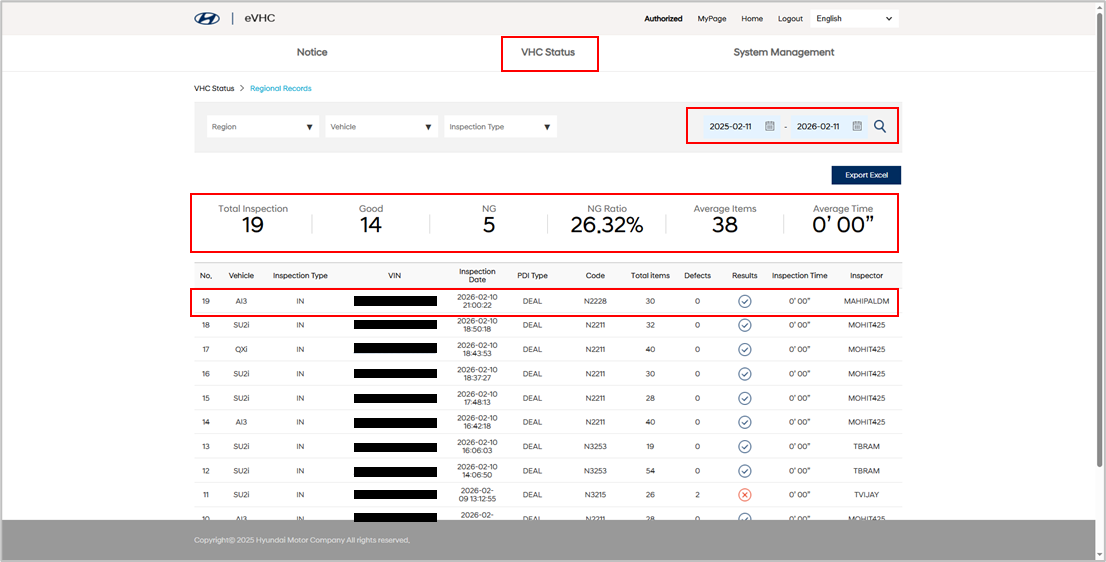

5.1. VHC Status Overview
- Total number of inspection and overall results are displayed
- The period can be changed from the date display
- List of eVHC Auto Check results will be displayed
- Click on the VIN to view detailed results

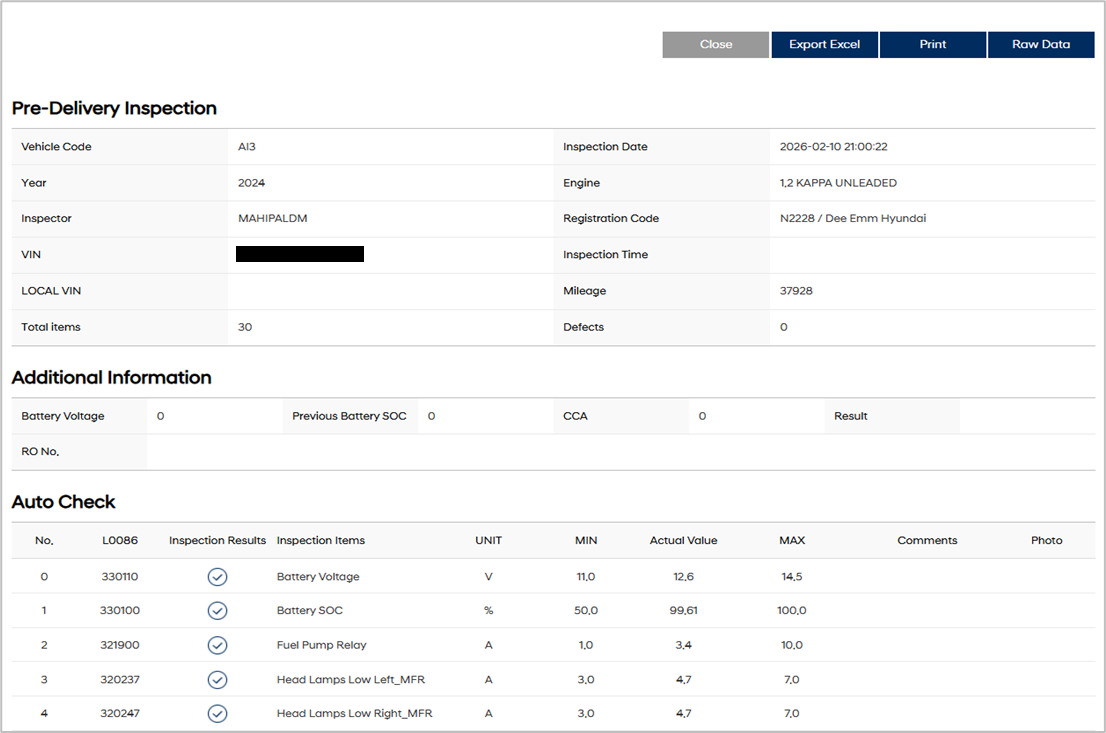

5.2. VHC Status Detail
- Vehicle and overall inspection details are displayed above
- You may also check detail on Auto Check items
- Please note, the number of Auto Check items will differ from vehicle to vehicle
- Use export functions on top of the screen to extract data to a documentation format
