※ Images and names may differ depending on the region and manufacturer.
How to connect VCI2 or VCI3 to GDS Smart / GENESIS Smart / KDS2.0.

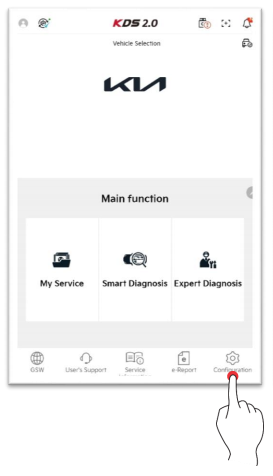

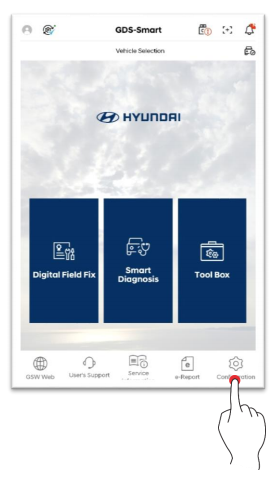

1. Press [Preferences] at the bottom of the main screen.

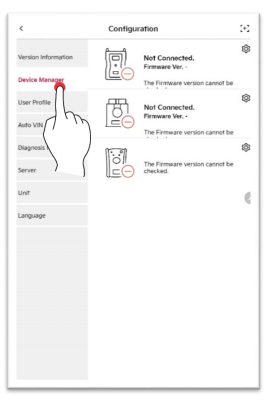

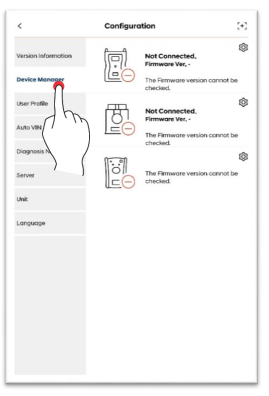

2. Tap [Device Manager].

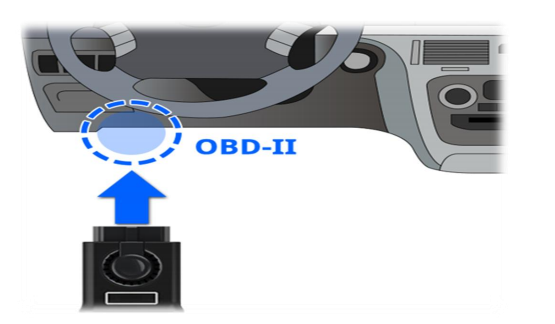

3. Connect VCI II Module to the vehicle’s OBD-II Connector to supply power, and proceed
with the following process

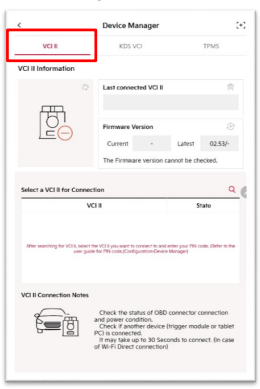

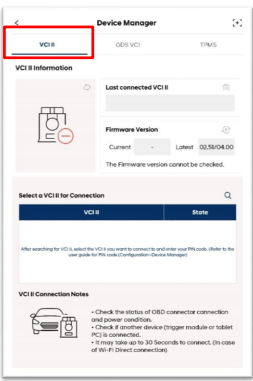

4. Touch the VCI II tab of the Device Manager

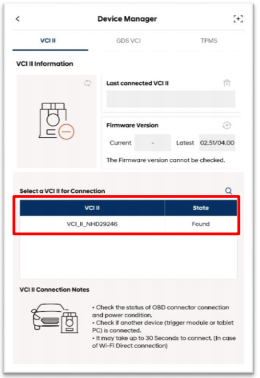

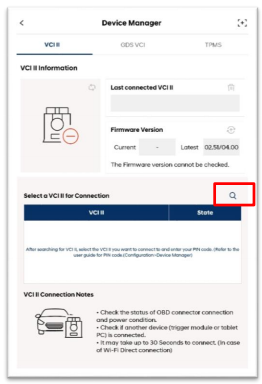

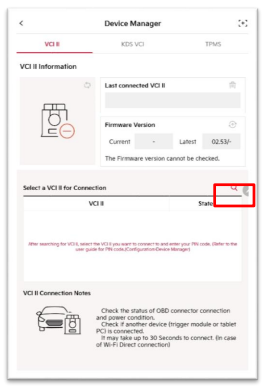

5. Search for VCI II to connect through the [ ] icon.

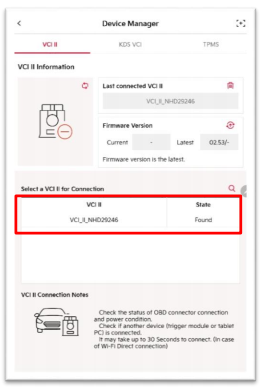

6. Check the serial number of the VCI II to connect, and select it

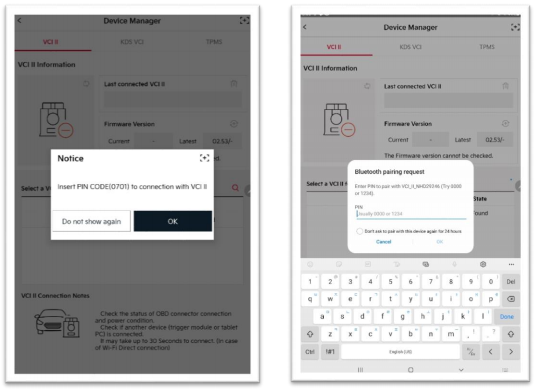

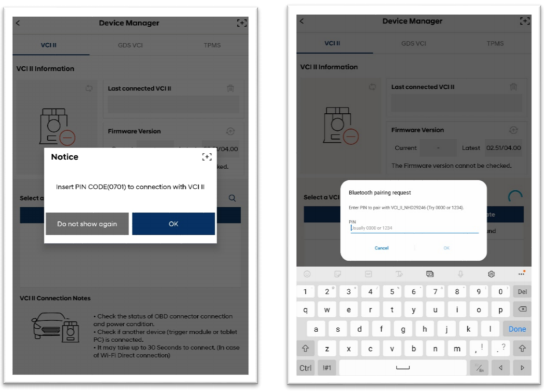

7. Check the PIN CODE, and enter it.

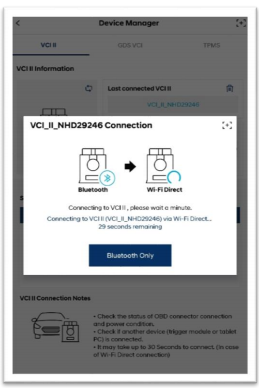

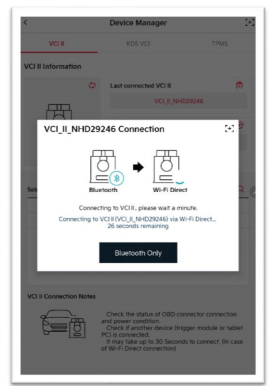

8. VCI II connection is in progress.

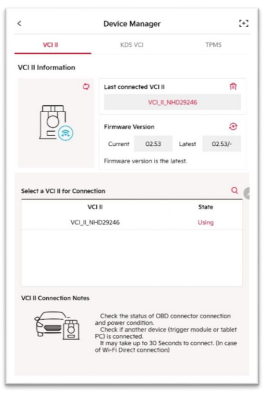

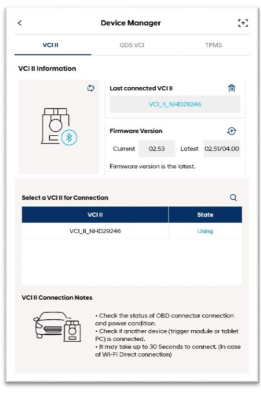

9. VCI II connection is completed.
If the device is not detected or a pairing, communication, or power error occurs during connection, please refer to the VCI II(2) Troubleshooting - Connection, Firmware, Power, Communication & Repair Guide.
