Error code occurred during ECU upgrade (5021-10-7F22)

Applicable Error Codes:

5021-10-7F22
7000-27-7FF0

Symptom:

ECU upgrade in progress, error code [5021-10-7F22] occurs.

Cause:

This error code indicates that the controller's communication open command was not successful due to unsuitable conditions.

Resolution:

1. Check Vehicle Condition: Ensure the vehicle is in the ignition ON state when attempting the software update. If the vehicle is in the ignition OFF state, switch to the ignition ON state and try again.
2. Upgrade Mode Verification: Verify whether the ECU upgrade was attempted in automatic mode or manual mode.
3. Manual Mode Check: If the upgrade was performed in manual mode, ensure the ECU upgrade was attempted in a category suitable for the controller.
4. Aftermarket Equipment: Check if the vehicle is equipped with any aftermarket equipment that might affect the upgrade process.

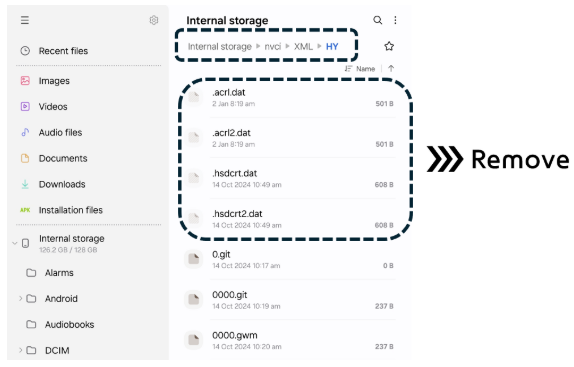

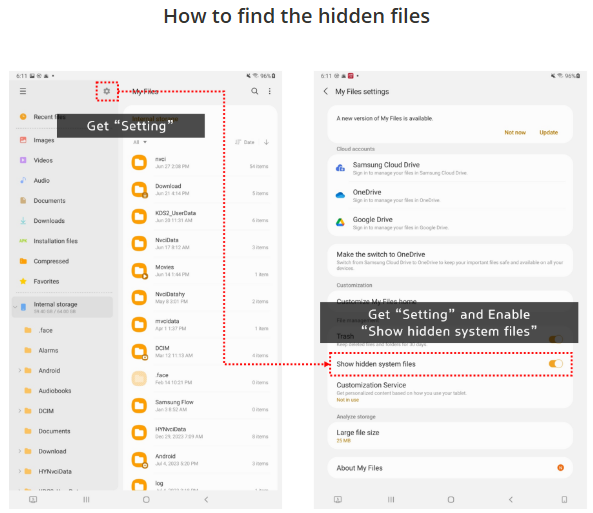

5. Log out,  find and remove hidden files following to instructions below.






   ※After getting in 📁[XML], please access 📁[HY](Hyundai, Genesis), or 📁[KM](KIA) accordingly

   Further Assistance: If the issue persists, visit GSW-Technical Hotline and describe your symptoms.

[Further Resource]

What to Do When ECU Upgrade Fails

How to send the error log report on GDS Smart/KDS2.0

How to get ECU logs from your tablet on GDS Smart/KDS2.0

In case the above workaround doesn't resolve the issue, please contact your distributor or GIT assistance at following email for further support.
