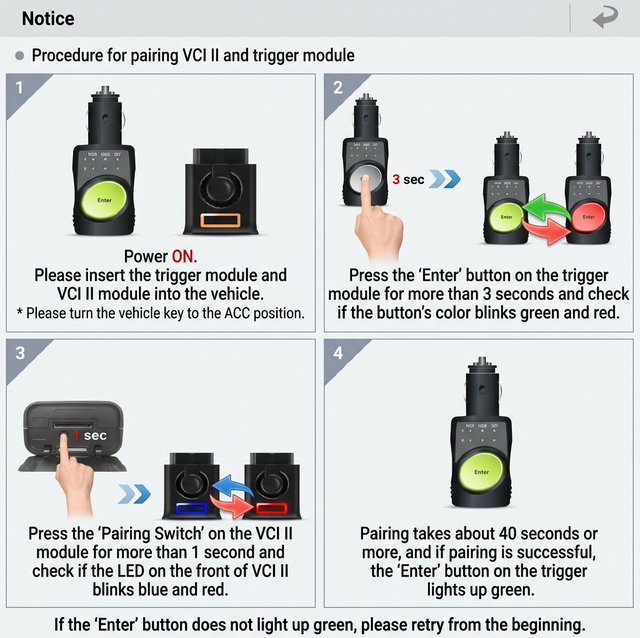

How to pair VCI II/CVCI II and trigger module

1. Power ON. Please insert the trigger module and VCI II module into the vehicle. (* Note: Please turn the vehicle key to the ACC position.)
2. Press the 'Enter' button on the trigger module for more than 3 seconds and check if the button's color blinks green and red.
3. Press the 'Pairing Switch' on the VCI II module for more than 1 second and check if the LED on the front of VCI II blinks blue and red.
4. Pairing takes about 40 seconds or more. If pairing is successful, the 'Enter' button on the trigger lights up green.

Note: If the 'Enter' button does not light up green, please retry from the beginning.
