The 7000-01-1010 error is caused by network or physical connection issues and incomplete environment settings. Troubleshooting steps include checking the VCI LED, ensuring IG ON state, setting a fixed IP, disabling LTE/5G, inspecting cables, updating Google Play system, rebooting the tablet, resetting the vehicle battery, and replacing cables or devices. VCI 3 does not require an ECI connector. If unresolved, contact the vehicle or controller manufacturer.

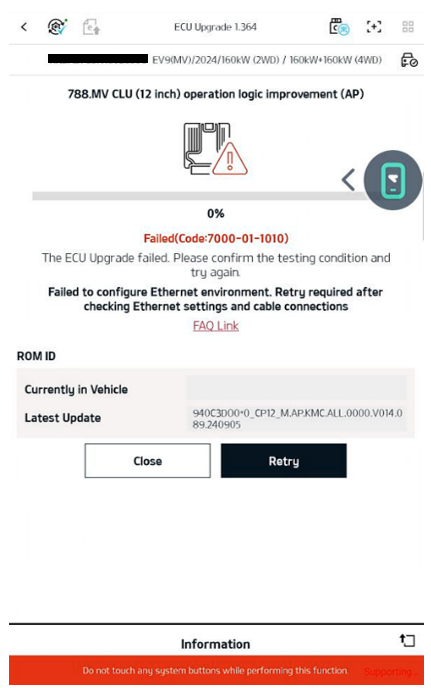

Example of Error Screen
7000-01-1010 Error Checklist
-
Check whether the VCI module LED is flashing green.
When starting reprogramming (attempting Ethernet connection), please check if the LED on the ECI connected to the VCI flashes green. - Confirm that reprogramming was attempted with the vehicle IG ON state.
-
Confirm that the fixed IP setting has been completed. A correct fixed IP is required for network connection.
🔗 How to set a fixed IP -
Check whether LTE/5G is disabled. (If the tablet does not support mobile data, this is “Not applicable”)
※ If LTE/5G is enabled, it may affect wired Ethernet connection. Please turn off LTE/5G and try again via Wi-Fi or wired connection. -
Check the wired cable connection status and whether there is any disconnection.
• When using VCI3: check USB cable connection
• When using VCI2: check ECI cable connection
Since physical connection failure may be the main cause, please inspect the condition of all connectors/cables.
If you have a spare ECI, please try replacing the ECI and perform the operation again. -
Check if Google Play system update is up to date. (Settings > Security and updates)
🔗 How to update Google Play system - Reboot the tablet and check if the same issue recurs.
- Remove the vehicle battery (power reset), wait at least 15 minutes, then retry and check if the same issue recurs.
- Replace with another wired cable and check if the same issue recurs.
- Replace with another tablet and check if the same issue recurs.
Q1. What causes the 7000-01-1010 error?
A1. The cause is network/physical connection issues or incomplete environment settings. Please check the following items in order.
- Fixed IP not set → Correct fixed IP setting required (see link above)
- LTE/5G enabled → Disable and retry via wired/Wi-Fi
- Cable disconnection/fault or not connected → Check connection status/disconnection, test by replacing with another cable
- Google Play system not applied → Update to the latest version (see link above)
- Possible VCI device defect → Test by replacing with a spare VCI2/VCI3
- Vehicle/power status → IG ON, retry after battery reset
- Device issue → Reboot tablet or test by replacing with another tablet
Q2. When using VCI 3, do I need to connect the ECI connector?
A2. No. VCI III operates normally without the ECI connector. (Supports wired connection only)
Q3. What if the error is not resolved after trying all methods?
A3. If the problem persists despite performing all the above checklist items, please contact the vehicle or controller manufacturer.
