Sealing Connector Compatibility Guide by Car Model

       Written by Oscar

This ensures a proper fit and optimal performance for leak tests. For detailed information on which sealing connector is compatible with your car model, please download one of the tables attached depending on a car brand and find applicable sealing connectors referring to the instructions below.

How do I use the compatibility guides attached?

1. Download and access the compatibility guide for your car brand (Hyundai, KIA, or Genesis).
2. Locate your car model year.
3. Search for the specific sealing connector you need by dots(●) and part number(Exxx or Pxxx).
   • The guide will indicate which connectors are applicable with your car model.

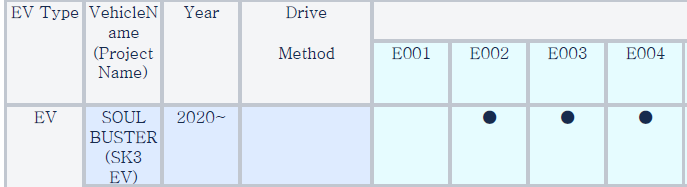

     • Ex) SK3 (Soul Buster 2020~) uses battery sealing connectors E002, E003, and E004.

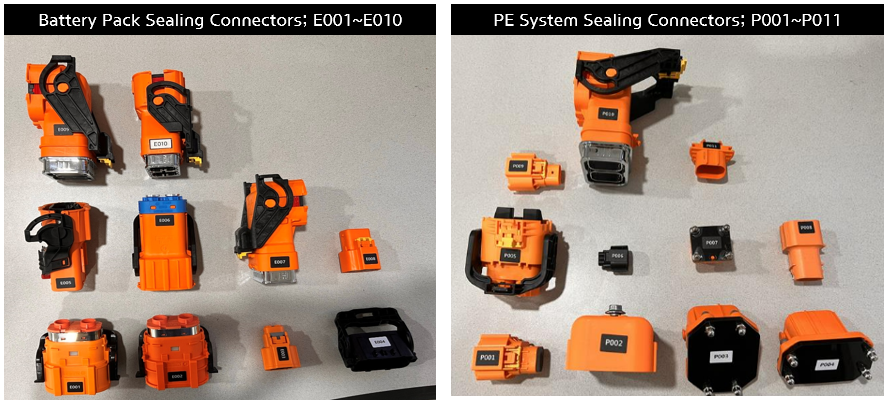

What does a sealing connector look like?

PE System Leak Test Sealing Connectors and Battery Pack Leak Test Sealing Connectors have different appearances

• • Battery pack sealing connectors: These connectors have a part number that starts with the letter "E"
  • PE system inspection sealing connectors: These connectors have a part number that starts with the letter "P"

E007 and E010 can be used depending on the shape of the battery pack assembly

They are designed for the same socket type and should be used according to the battery pack configuration of each vehicle

Refer to the attached tables, make use of E007 and E010 appropriately

They are designed for the same socket type and should be used according to the battery pack configuration of each vehicle

[Revision Note]
