This document provides detailed guidance on the part number system (starting with E, P, V), installation positions (F, R), E007 and E010 socket compatibility, model-specific installation guides, and venting valve specifications for Genesis EV battery packs and PE systems. It includes full coverage of latest 2025~2026 models and newly established venting adapters.

📑 Table of Contents



Executive Summary & Sealing Rules

  • Battery Pack Sealing Connectors: Part numbers begin with letter "E" (E001 ~ E016).
  • PE System Sealing Connectors: Part numbers begin with letter "P" (P001 ~ P019).
  • Connector Location Guide: F indicates Battery Pack Front position and R indicates Battery Pack Rear position (e.g., P001(F) = Battery pack front, F/R = Battery pack front & rear common).
  • Venting Valve Adapters: Part numbers begin with letter "V" (V001 ~ V008).
  • HEV / PHEV Battery Venting Kit: Common kit HK09356-P7000 applied.
  • E007 vs E010 Compatibility Principle: Designed with identical socket geometry and selected based on specific battery pack assembly configurations.

What do the sealing connectors look like?

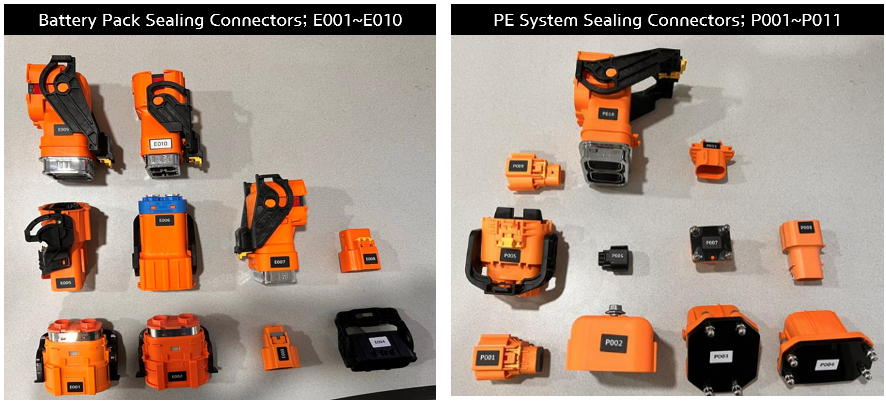

PE system sealing connectors and battery pack sealing connectors have distinct physical shapes.

  • Battery Pack Sealing Connectors: Part numbers begin with letter "E" (E001 ~ E016).
  • PE System Sealing Connectors: Part numbers begin with letter "P" (P001 ~ P019). (F: Battery Pack Front, R: Battery Pack Rear)
  • Venting Valve Adapters: Part numbers begin with letter "V" (V001 ~ V008).
  • HEV / PHEV Venting Kit: Common kit HK09356-P7000 applied.

High-Voltage Battery Pack and PE System Sealing Connectors

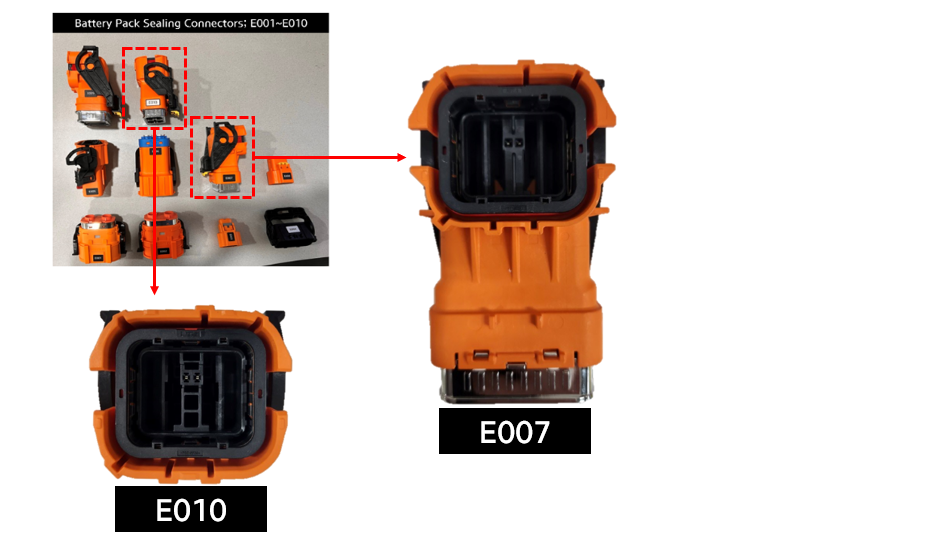

E007 and E010 are used according to battery pack assembly configurations

They share identical outer socket geometry but feature distinct internal terminal configurations.

[Key Technical Tip] E007 and E010 share identical outer socket geometry but feature distinct internal terminal pin layouts and keyways. Always install the precise connector matching the specific battery pack assembly to prevent misfitting damage and air leakage.

E007 vs E010

GENESIS Vehicle Sealing Connector Guide

💡 Click on any vehicle model below to expand and view the applicable Battery Pack (BSA) and PE System sealing connector specifications.

GV60 Standard (JW1 EV) (MY 2022~2025)

2WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E006 E007 E008
Venting Valve: -
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P004(F)
Battery Pack Rear (R): P002(R) P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



GV60 Long Range (JW1 EV) (MY 2022~2025)

4WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E007 E008 E010
Venting Valve: -
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P004(F)
Battery Pack Rear (R): P002(R) P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



Electrified GV70 (JK1 EV) (MY 2022~2024)

4WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E007 E010
Venting Valve: -
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P009(F) P010(F) P011(F) P012(F)
Battery Pack Rear (R): P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



Electrified GV70 PE (JK1 EV PE) (MY 2025~)

4WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E007 E010
Venting Valve: V001 x 2ea, V002 x 2ea
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P009(F) P010(F) P011(F) P012(F)
Battery Pack Rear (R): P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



Electrified G80 (RG3 EV) (MY 2022~2023)

4WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E007 E009
Venting Valve: -
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P009(F) P010(F) P011(F) P012(F)
Battery Pack Rear (R): P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



Electrified G80 PE (RG3 EV PE) (MY 2025~)

4WD View Details ▾
🔋 High-Voltage Battery Pack (BSA) Sealing Connectors
E004 E007 E009
Venting Valve: V001 x 4ea, V002 x 1ea, V005 x 2ea
⚡ PE System Sealing Connectors
Battery Pack Front (F): P001(F) P009(F) P010(F) P011(F) P012(F)
Battery Pack Rear (R): P003(R)
(F: Battery Pack Front / R: Battery Pack Rear)



GENESIS Comprehensive Sealing Connector Matrix Table

※ Support Scope Notice (Positive Policy): Only the specific vehicle models and model years explicitly listed in this table are supported. Any unlisted models or model years are not supported.
※ Location Symbol Guide: F = Battery Pack Front, R = Battery Pack Rear, F/R = Battery Pack Front & Rear Common

Vehicle Model Model Year Drive Battery Pack (BSA) Sealing Connectors PE System Sealing Connectors (F: Battery Pack Front, R: Battery Pack Rear) Venting Valve Sealing
GV60 Standard (JW1 EV) MY 2022~2025 2WD E004, E006, E007, E008 F: P001(F), P004(F) / R: P002(R), P003(R) -
GV60 Long Range (JW1 EV) MY 2022~2025 4WD E004, E007, E008, E010 F: P001(F), P004(F) / R: P002(R), P003(R) -
Electrified GV70 (JK1 EV) MY 2022~2024 4WD E004, E007, E010 F: P001(F), P009(F), P010(F), P011(F), P012(F) / R: P003(R) -
Electrified GV70 PE (JK1 EV PE) MY 2025~ 4WD E004, E007, E010 F: P001(F), P009(F), P010(F), P011(F), P012(F) / R: P003(R) V001 x 2ea, V002 x 2ea
Electrified G80 (RG3 EV) MY 2022~2023 4WD E004, E007, E009 F: P001(F), P009(F), P010(F), P011(F), P012(F) / R: P003(R) -
Electrified G80 PE (RG3 EV PE) MY 2025~ 4WD E004, E007, E009 F: P001(F), P009(F), P010(F), P011(F), P012(F) / R: P003(R) V001 x 4ea, V002 x 1ea, V005 x 2ea
