Symptom: I have to perform ACU variant coding but I cannot perform it due to the ACU DTC.
Cause: For airbag system variant coding, failures occur due to vehicle defects or mismatched EOL codes. In this case, you can check the reason for coding not being possible by checking the DTC details, so please perform coding again after resolving the cause.
Solution: How to proceed when ACU variant coding is not possible

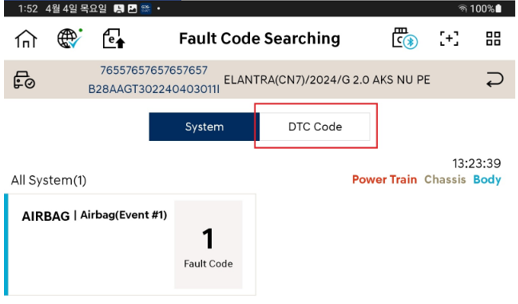

1. Check the airbag fault code and click DTC Code.

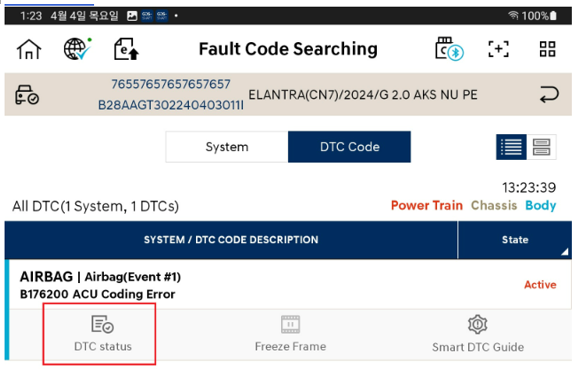

2. Click DTC Status

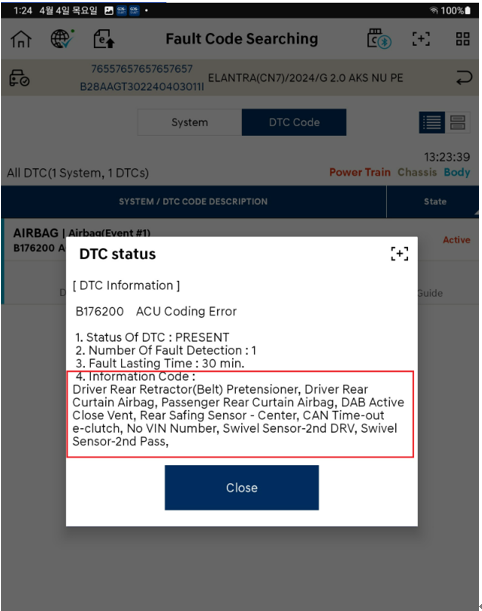

3. Solve the problems displayed in the Information Code.
