How to get ECU logs from your tablet on GDS Smart/KDS2.0

Screenshot_20240611_143357_One UI Home.jpg

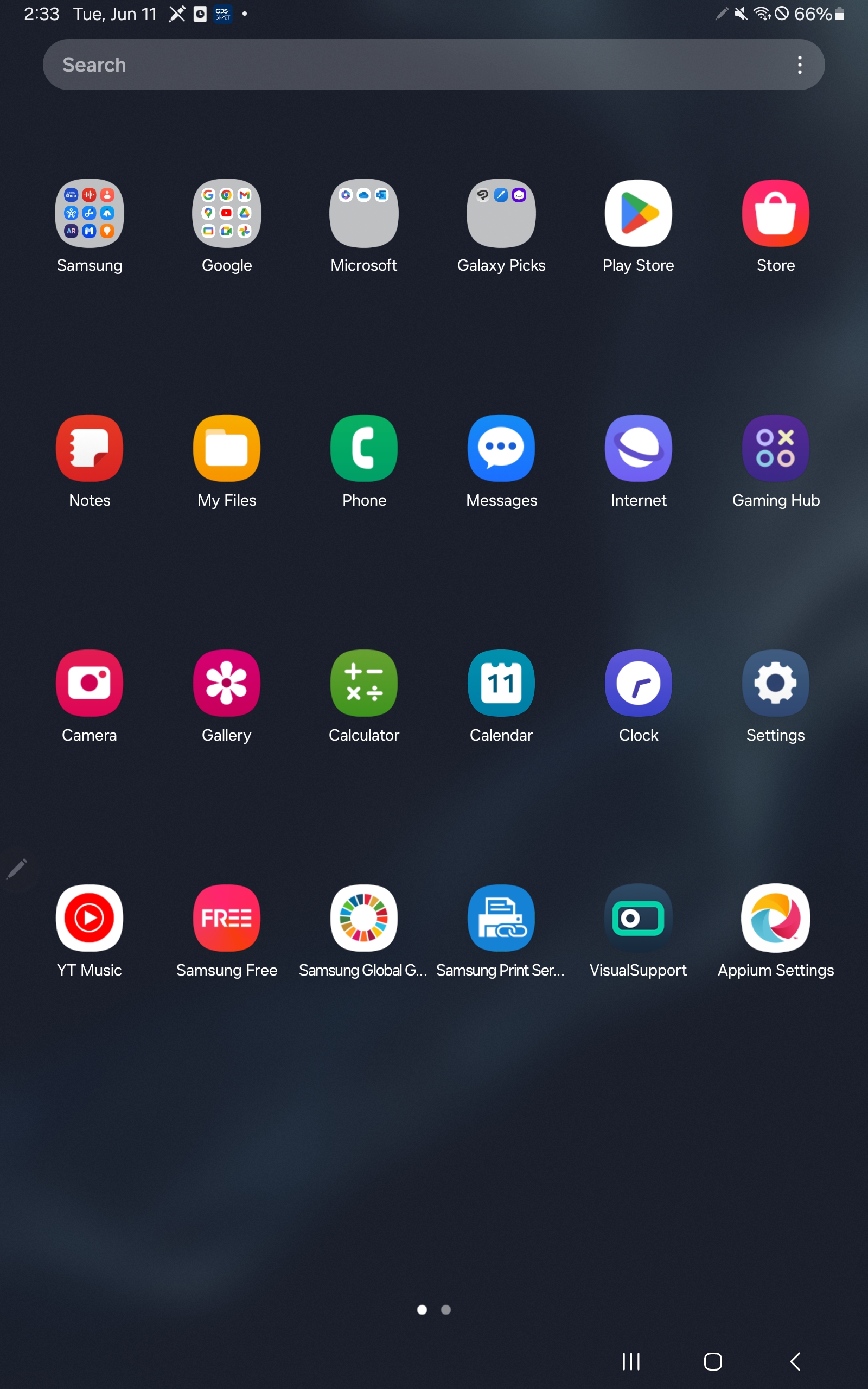

1. Please Click "My FIles" on your tablet.

Screenshot_20240611_143452_My Files.jpg

2. Please goto "Internal storage \ NvciData\ log", you will find "ecu" folder.

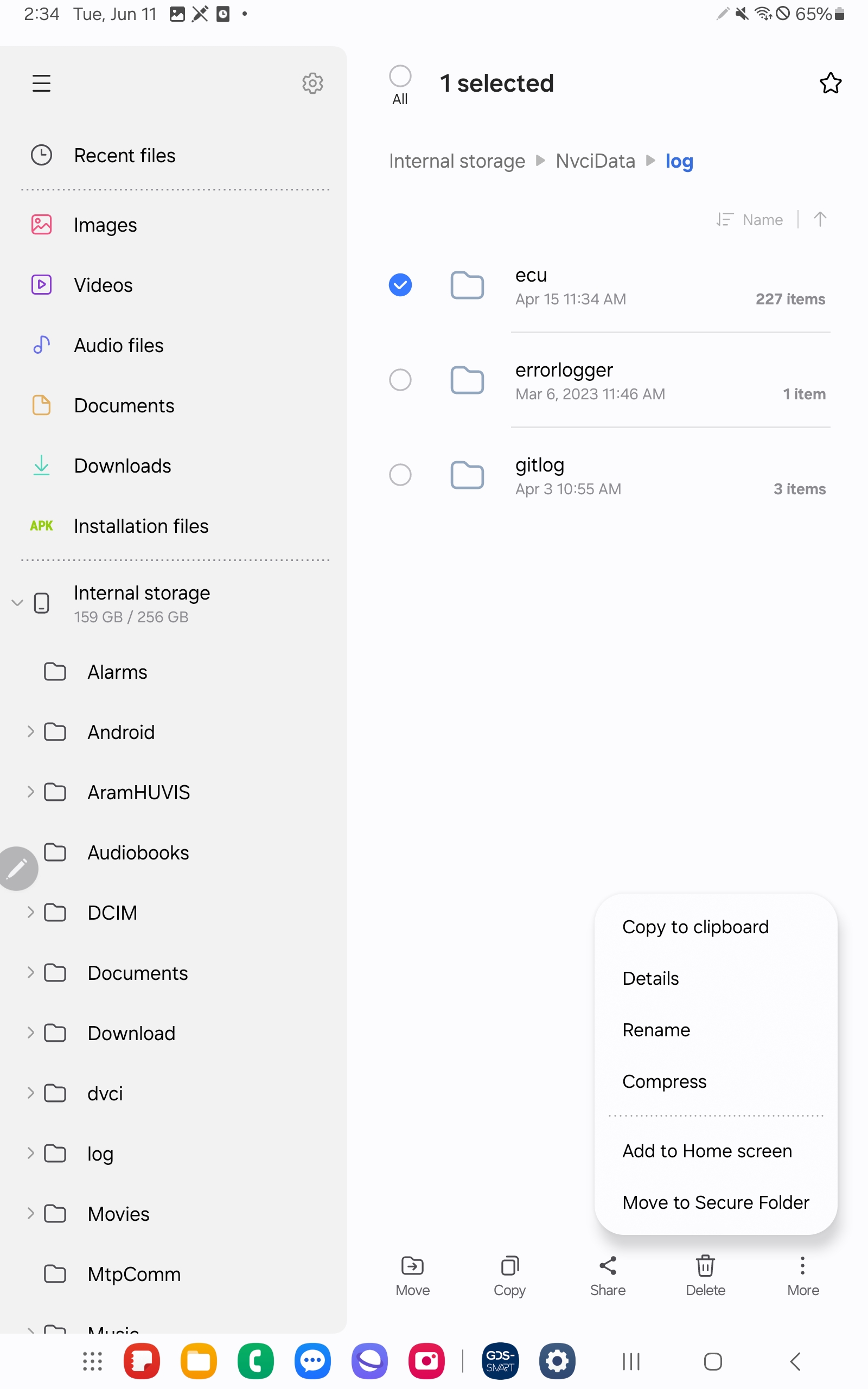

Select(Touch) "ecu folder" for long seconds (2~3seconds), when selected, click "More"

Then you can find pop-up message like upper menu.

Please click "Compress"

Screenshot_20240611_143521_My Files.jpg

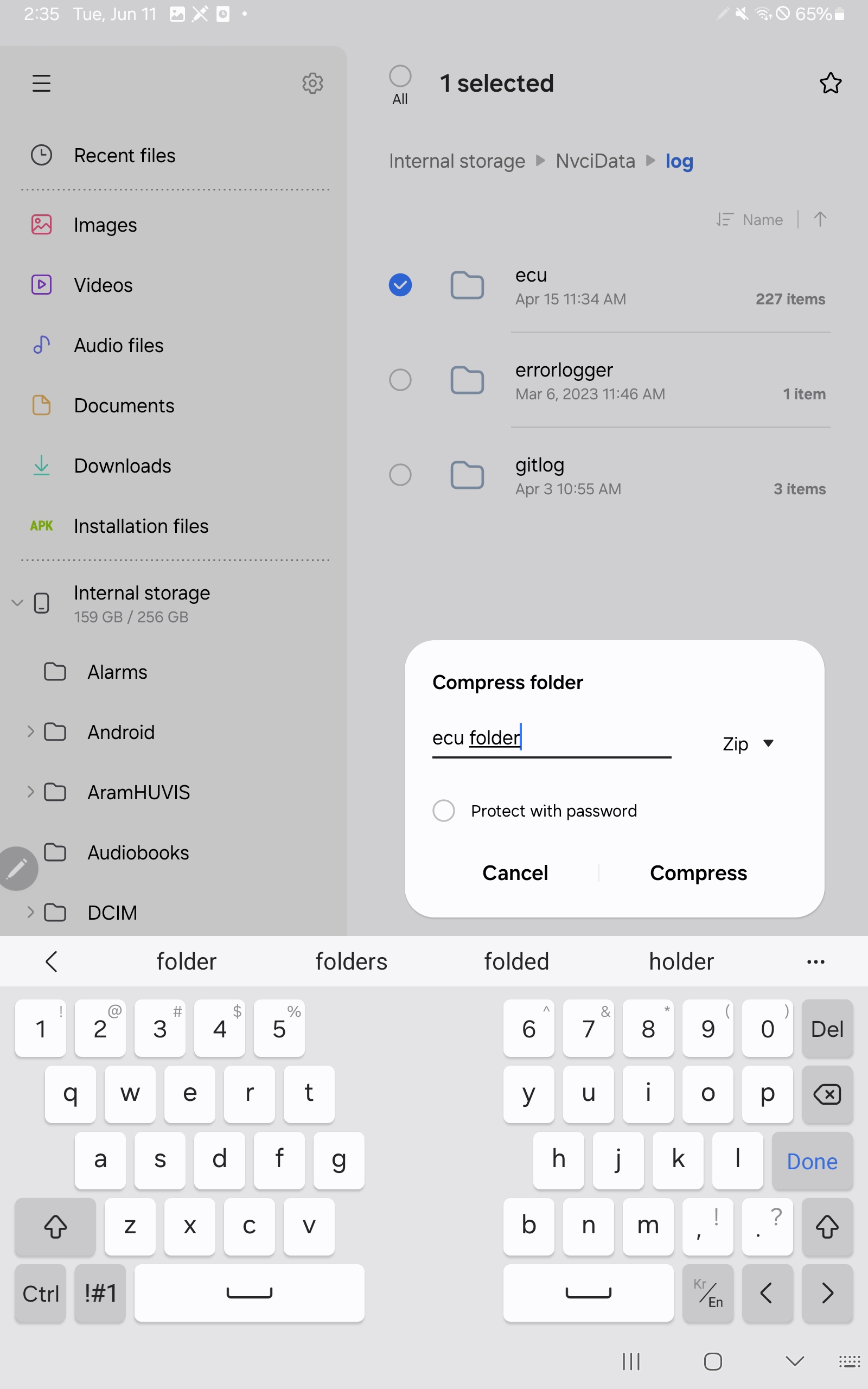

3. Rename it to "ecu folder" or anything else.

Screenshot_20240611_143529_My Files.jpg

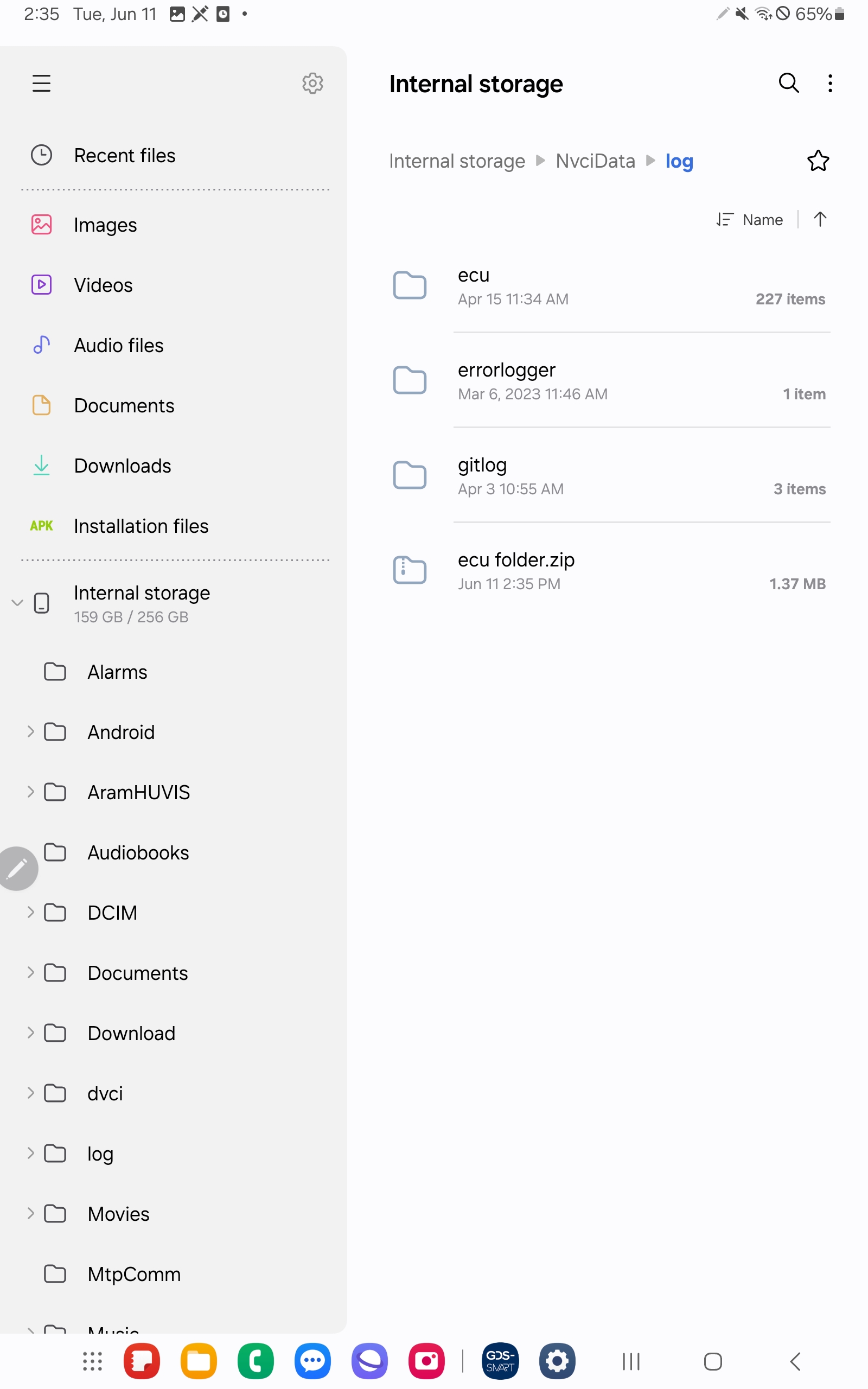

4. Now you have a "ecu folder.zip" file.

5. Transfer this file to your PC or Phone (quickshare...etc. )and email (with attachment) it to us.

(or simply send by gmail on the tablet)
