How to upgrade KDS 1.0 to KDS 2.0(Rev.Nov-18-2024)

Jeong, DJ

November 18, 2024 00:39

Please use the following guide to upgrade from KDS 1.0 to KDS 2.0.
A PDF file is also available for download at the bottom of the screen.

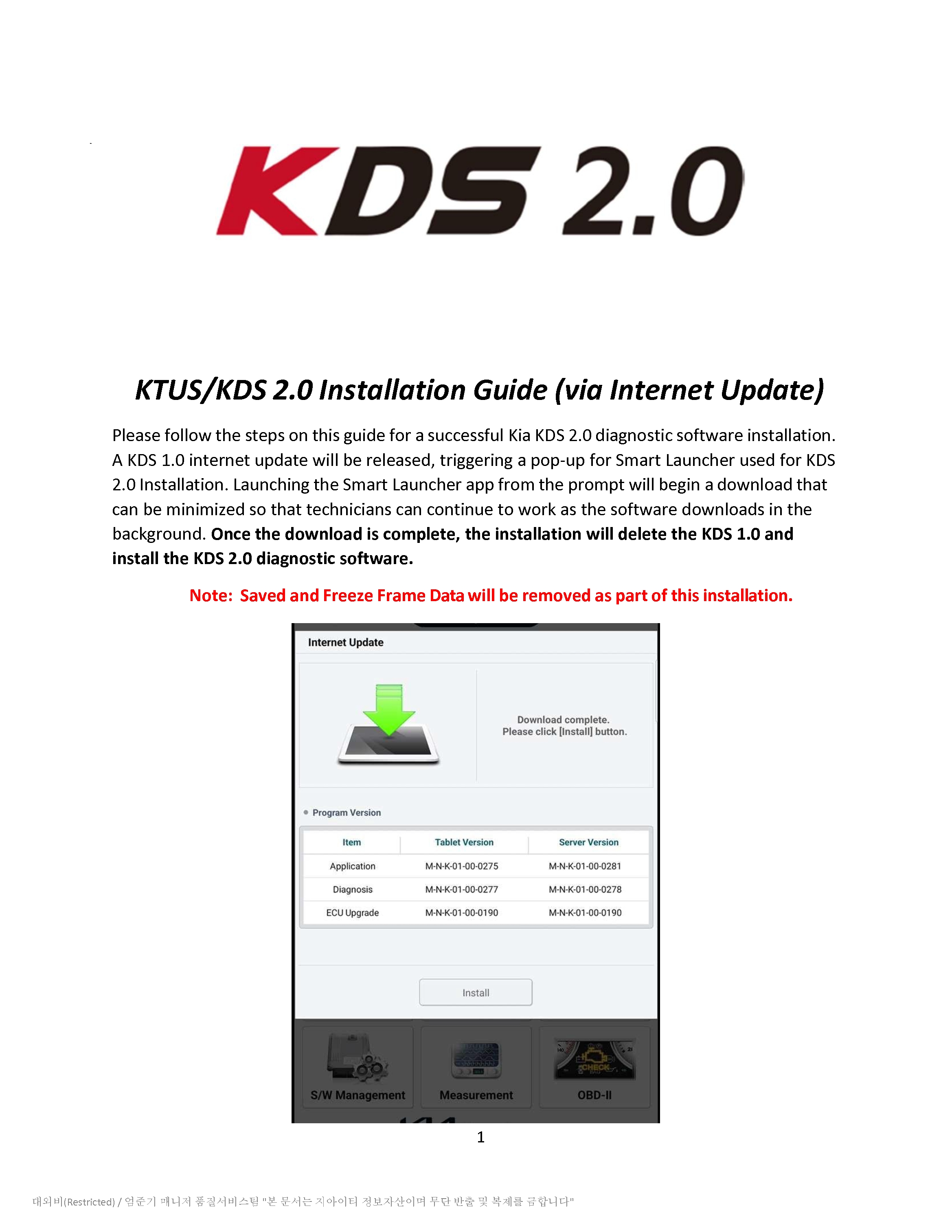

KDS 2.0 Installation Guide Nov 2024_1.jpg

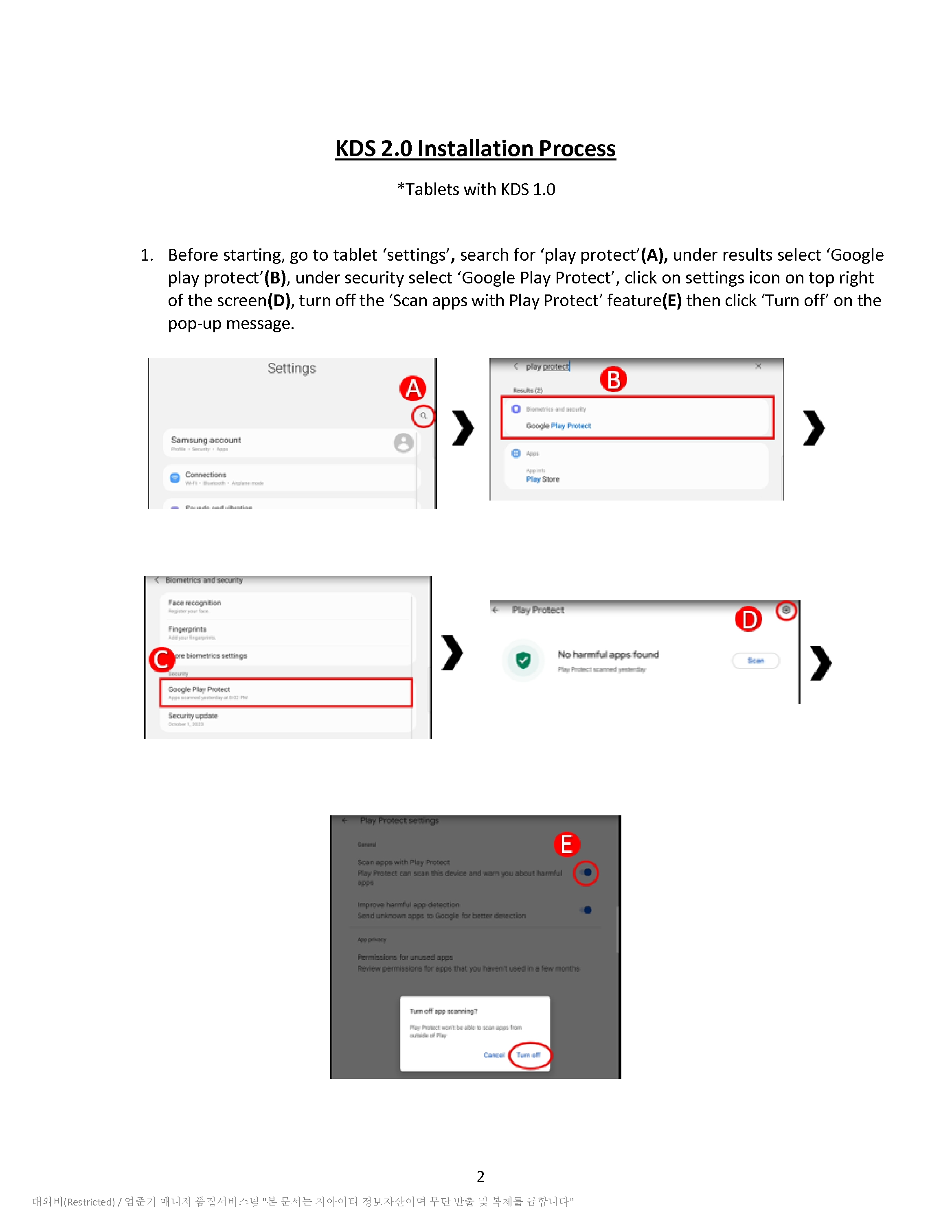

KDS 2.0 Installation Guide Nov 2024_2.jpg

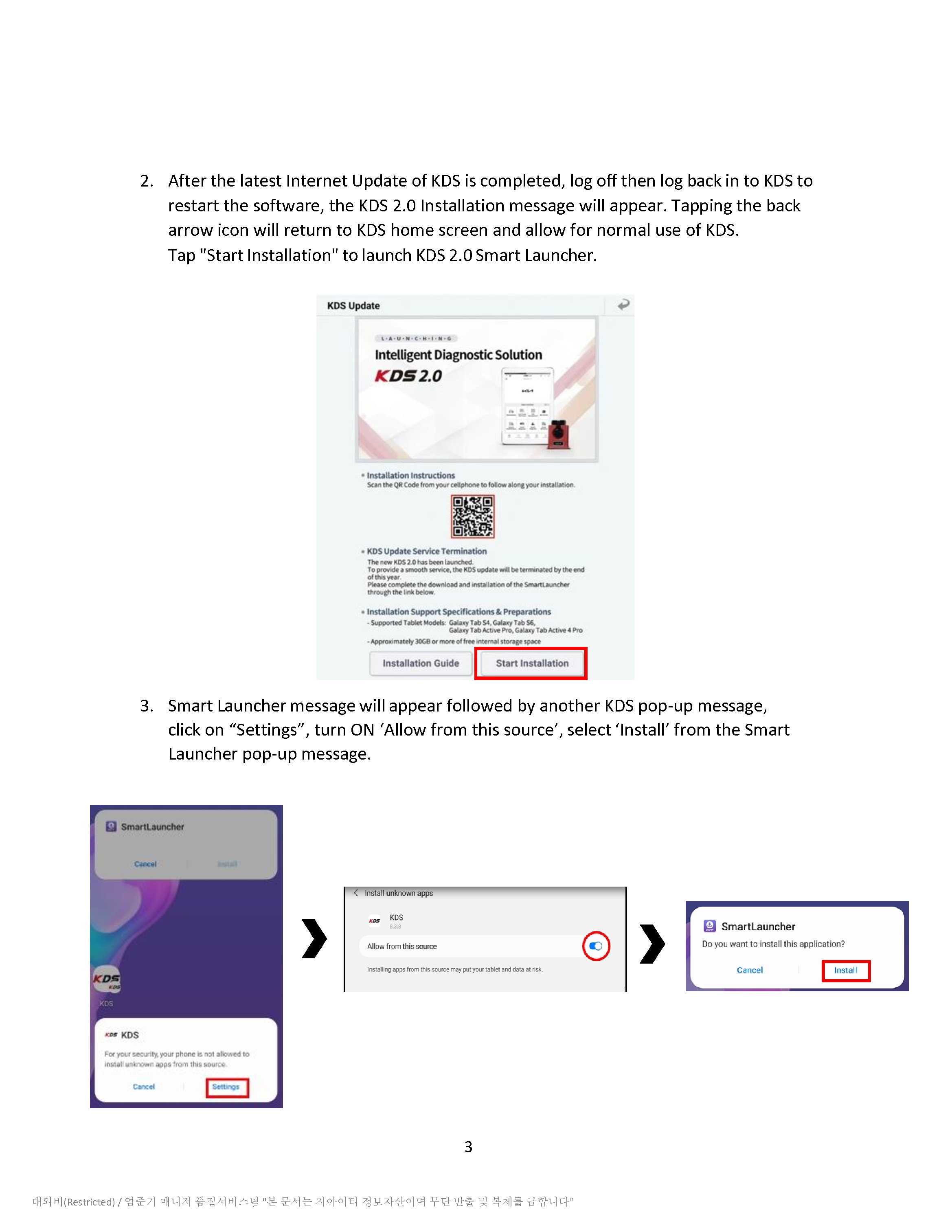

KDS 2.0 Installation Guide Nov 2024_3.jpg

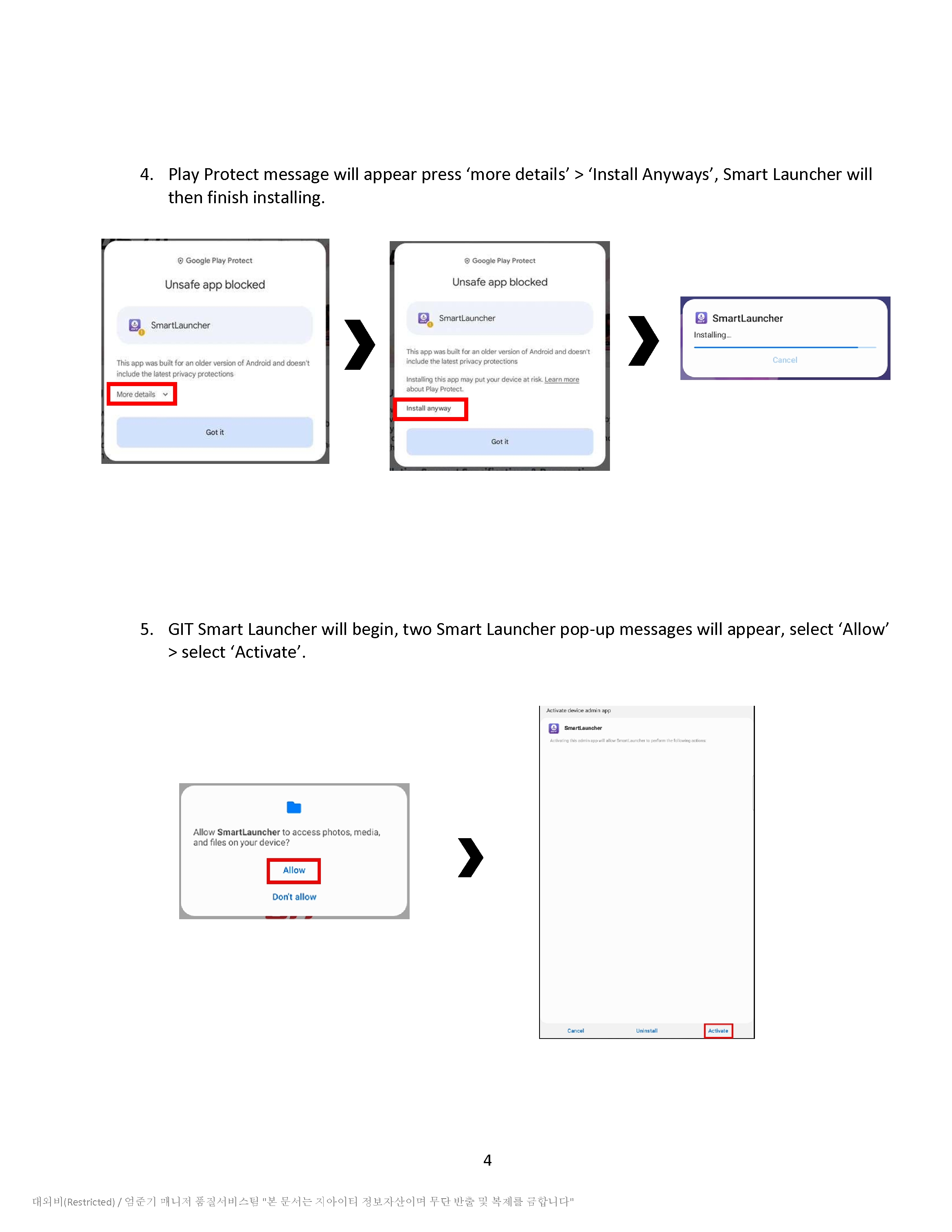

KDS 2.0 Installation Guide Nov 2024_4.jpg

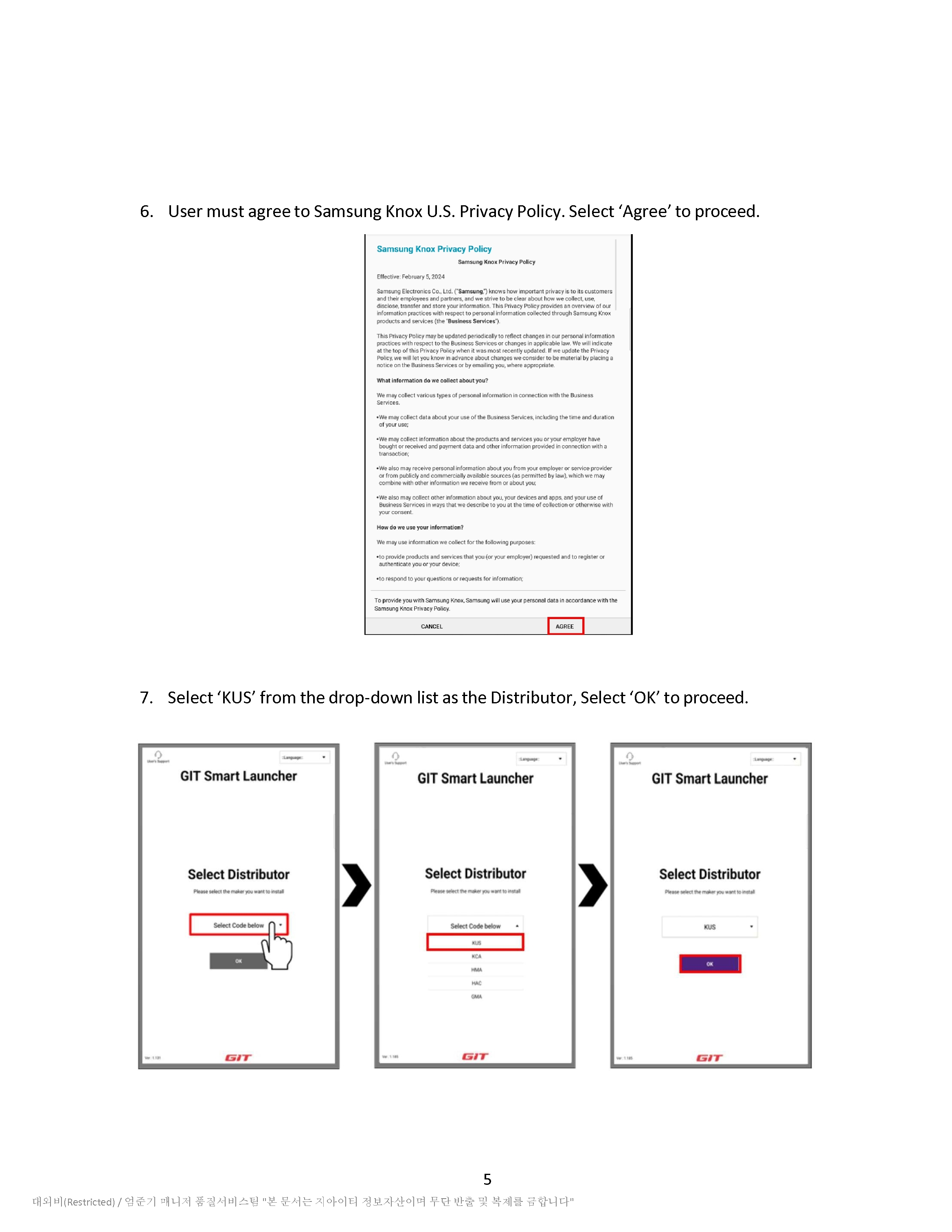

KDS 2.0 Installation Guide Nov 2024_5.jpg

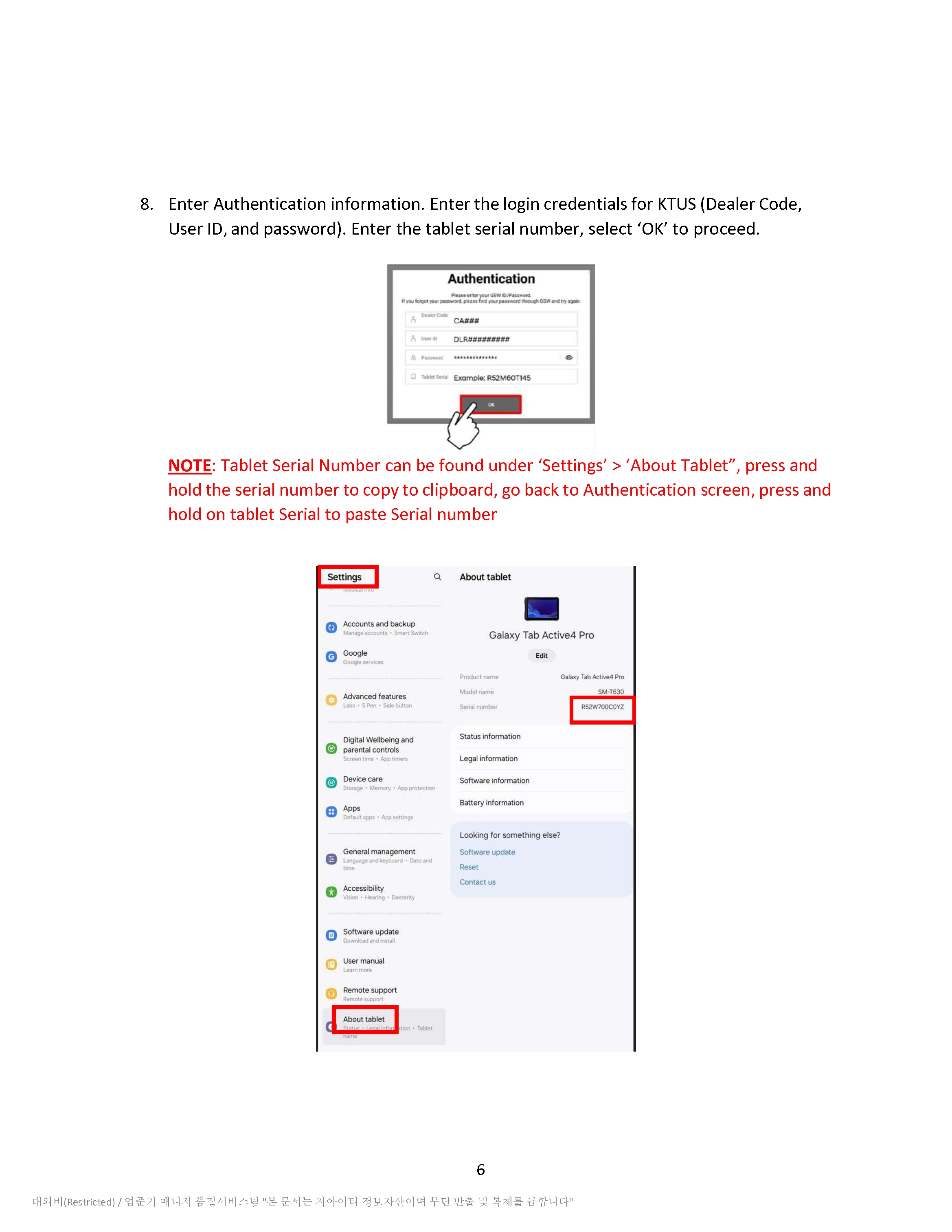

KDS 2.0 Installation Guide Nov 2024_6.jpg

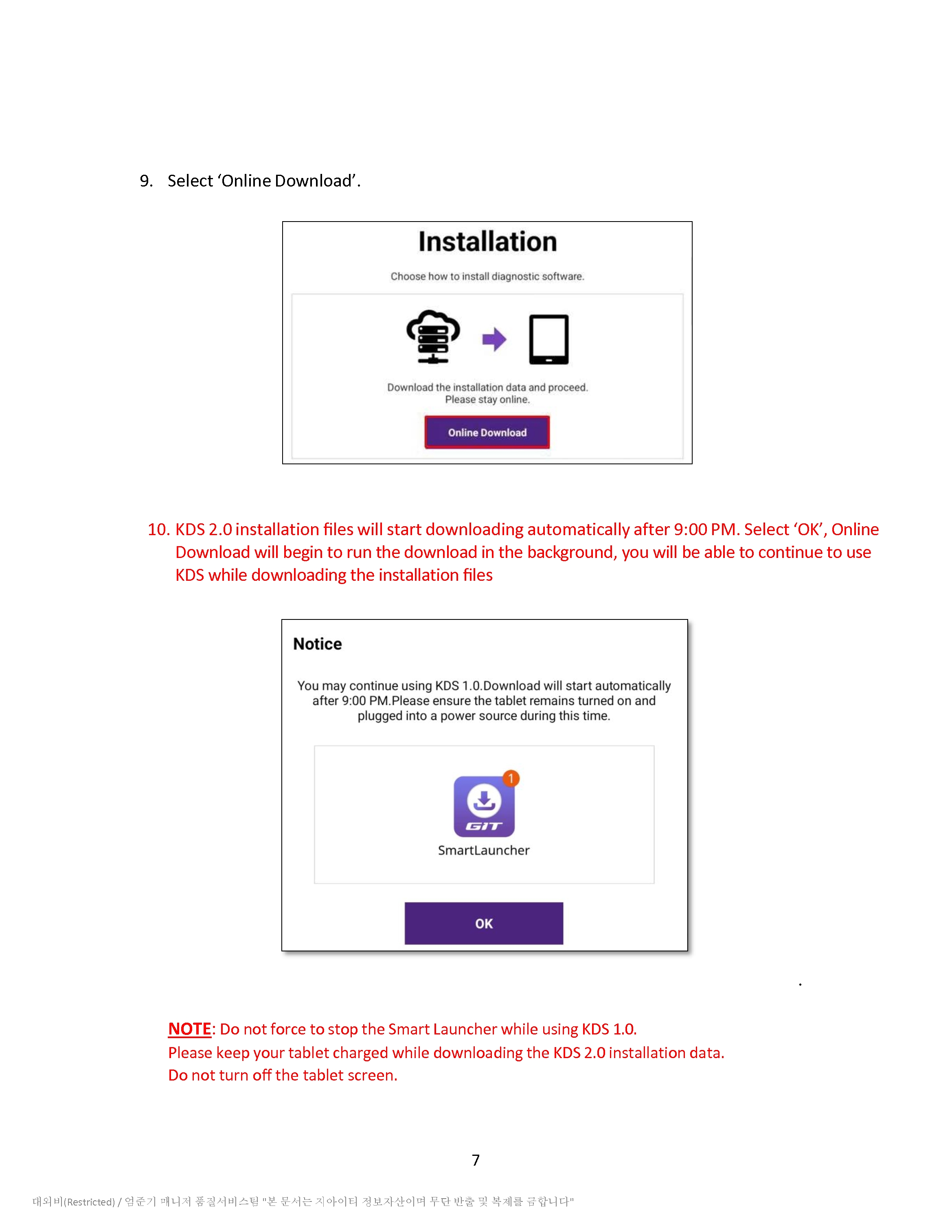

KDS 2.0 Installation Guide Nov 2024_8.jpg

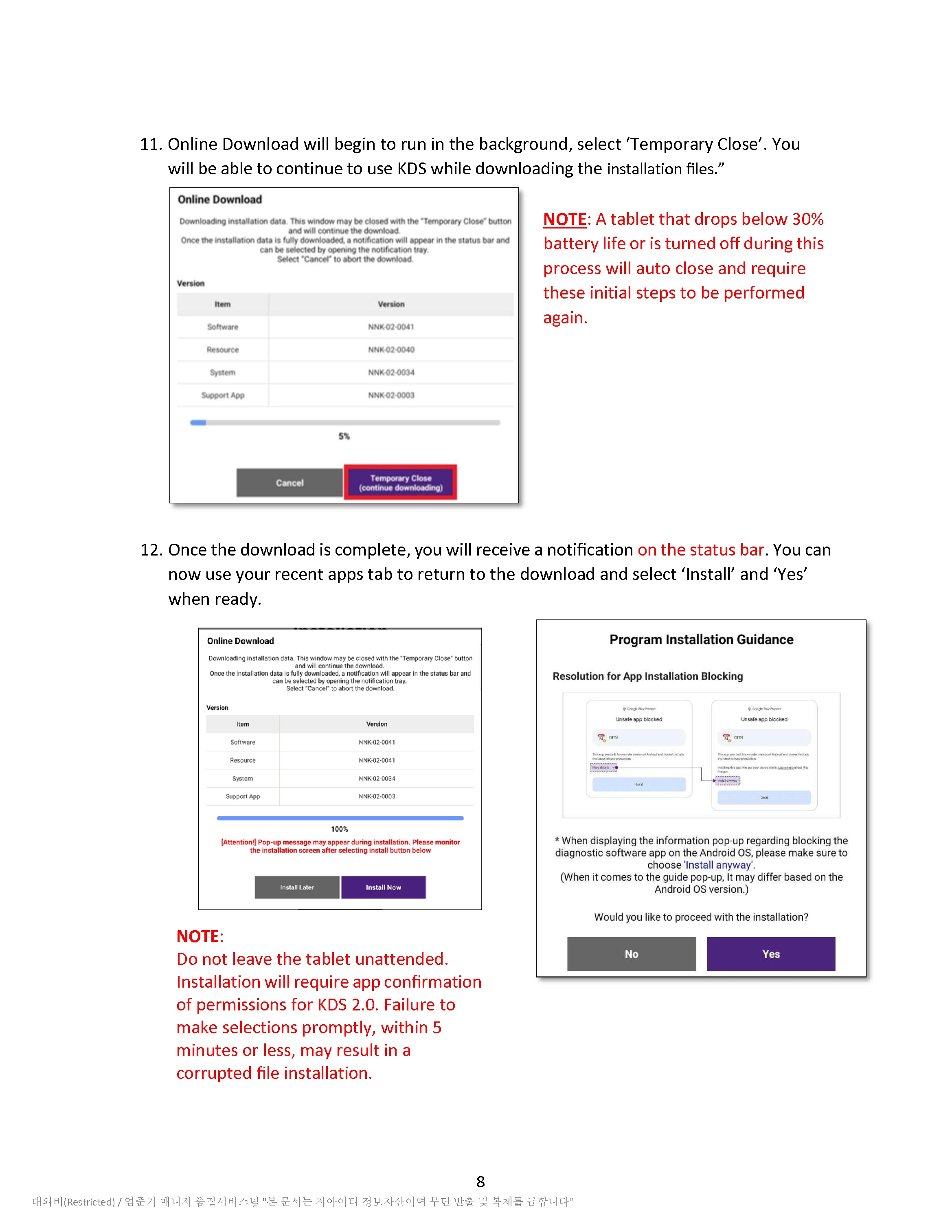

KDS 2.0 Installation Guide Nov 2024_9.jpg

KDS 2.0 Installation Guide Nov 2024_10.jpg

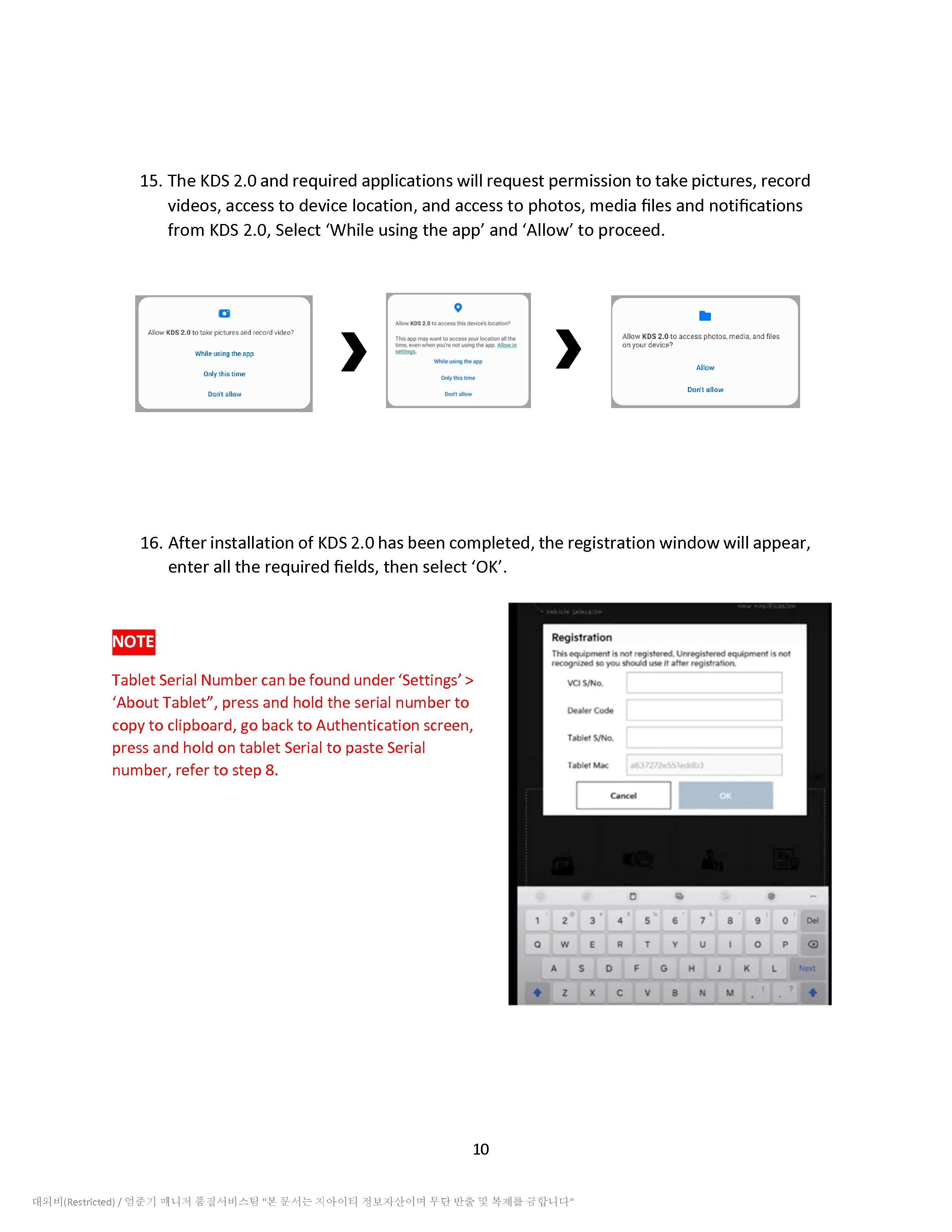

KDS 2.0 Installation Guide Nov 2024_11.jpg

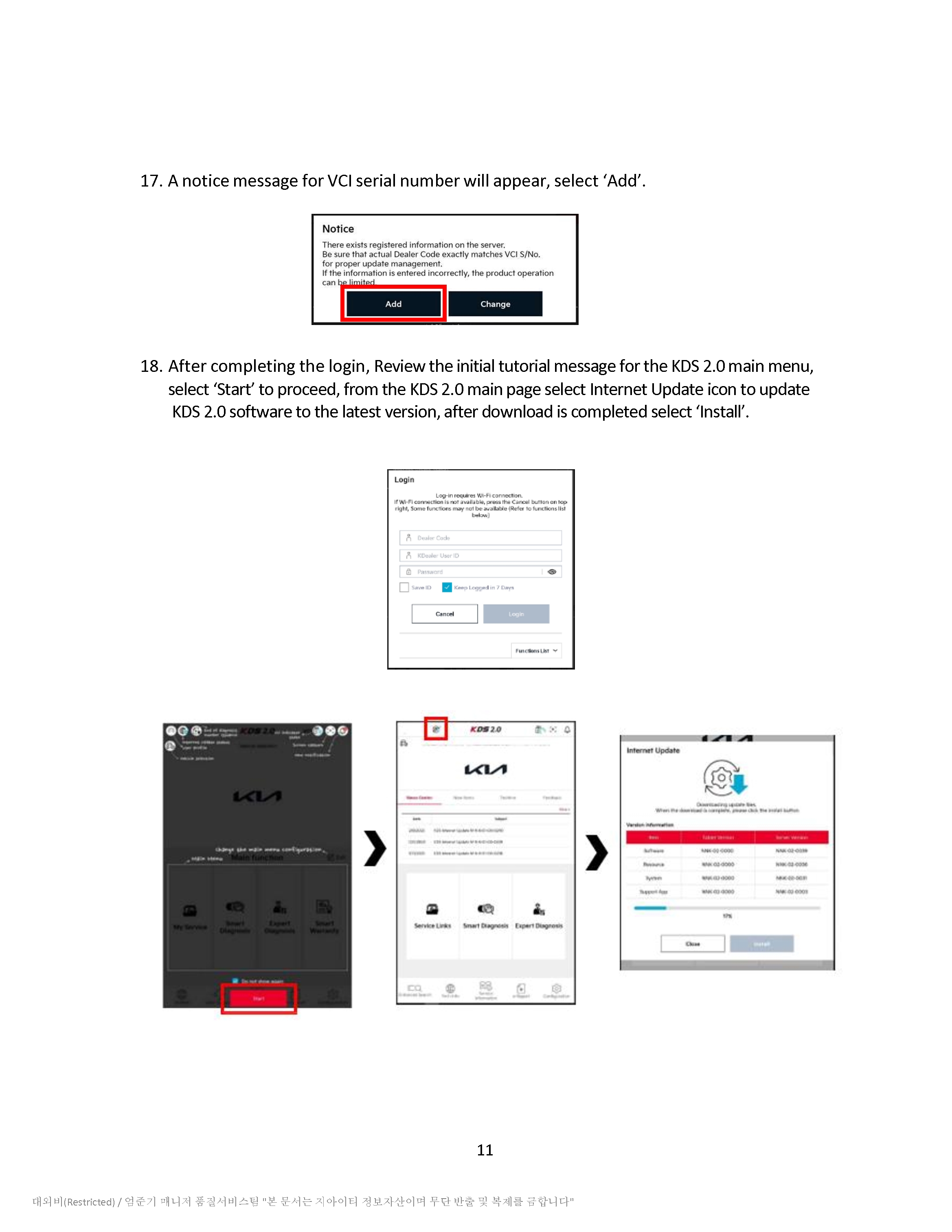

KDS 2.0 Installation Guide Nov 2024_12.jpg

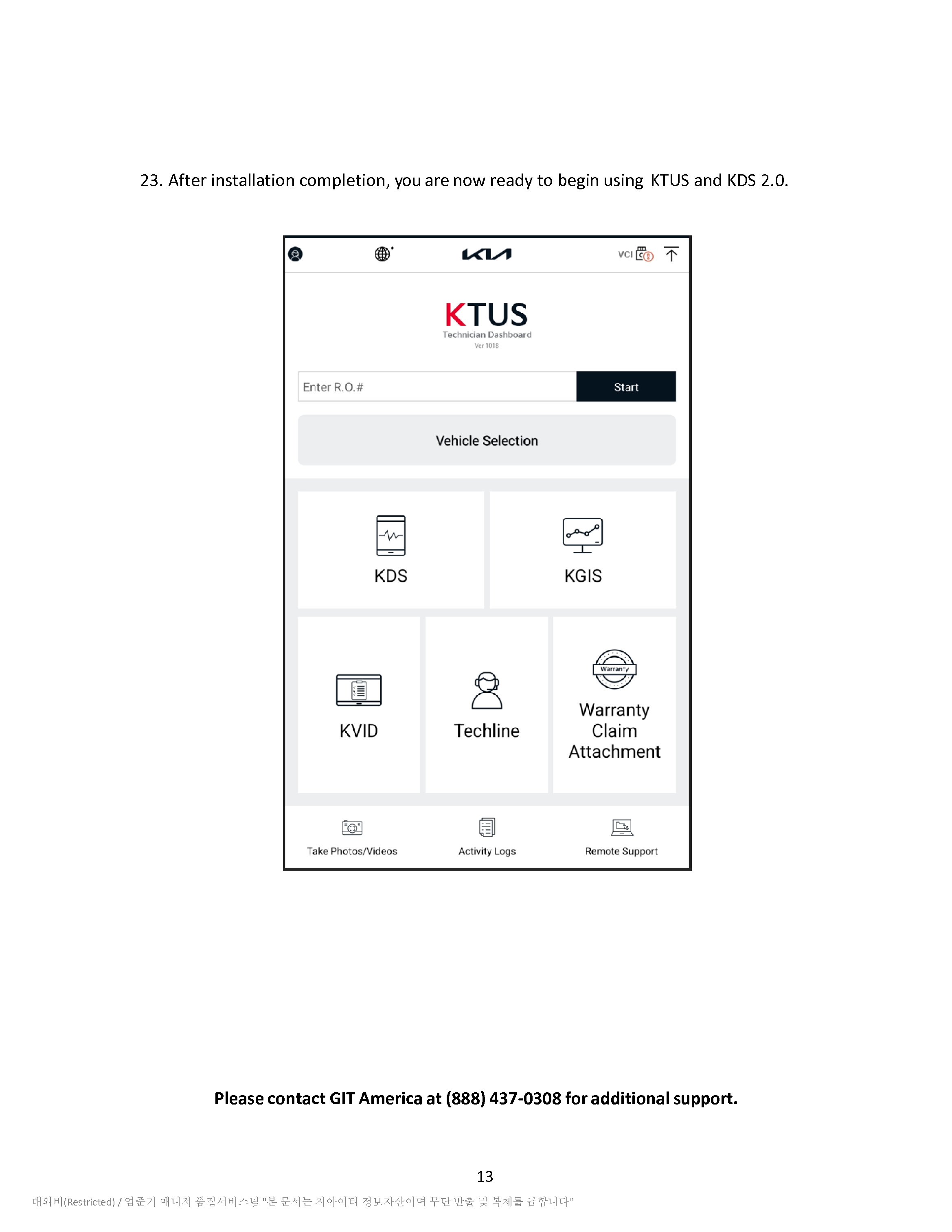

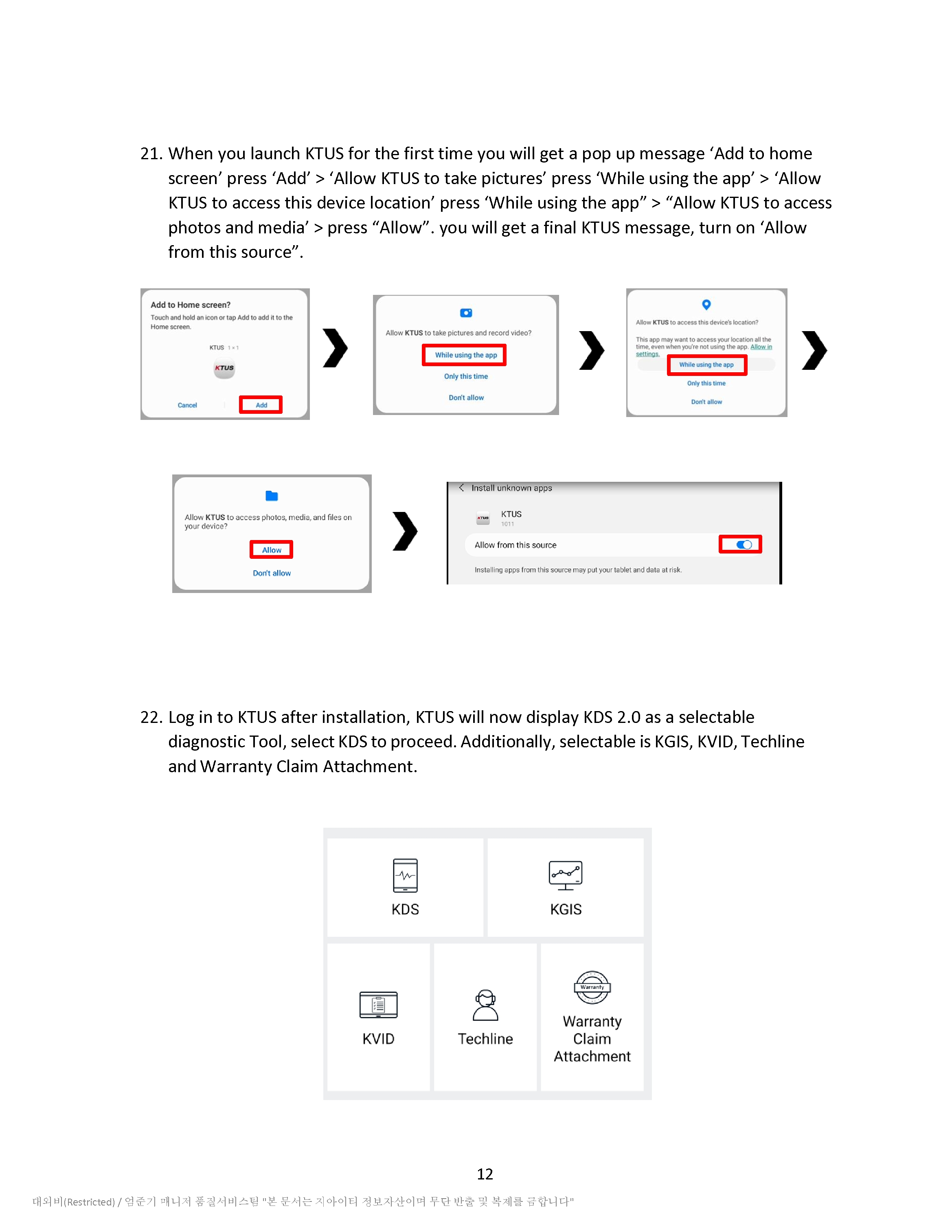

KDS 2.0 Installation Guide Nov 2024_13.jpg

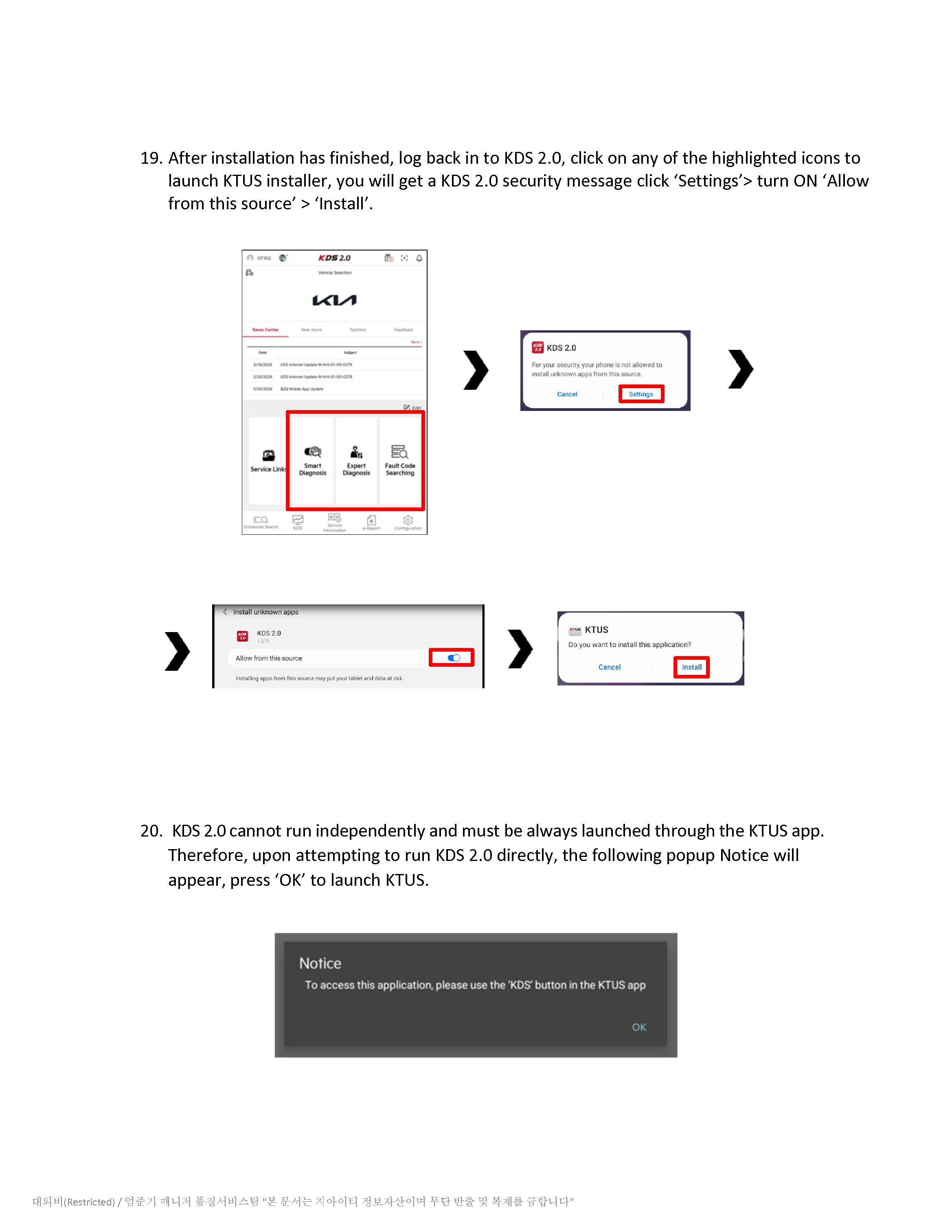

KDS 2.0 Installation Guide Nov 2024_14.jpg

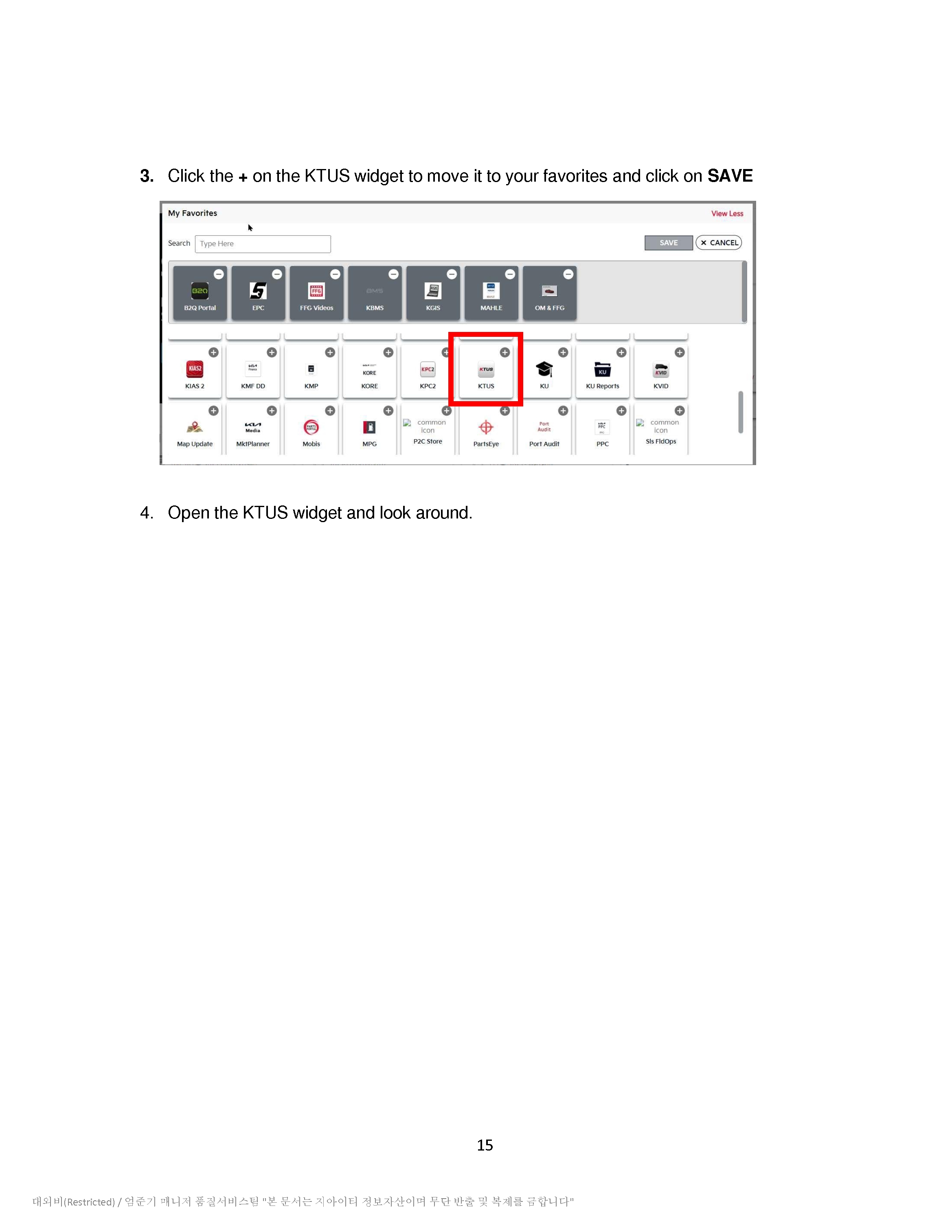

KDS 2.0 Installation Guide Nov 2024_15.jpg

KDS 2.0 Installation Guide Nov 2024_16.jpg

[Further Resource]

[Revision Note]

Nov-18-2024
