ECI Connection Guide.(Including Ethernet static IP setting method)

GIT Customer Support

September 09, 2024 07:15

Please see the ECI upgrade connection guide.

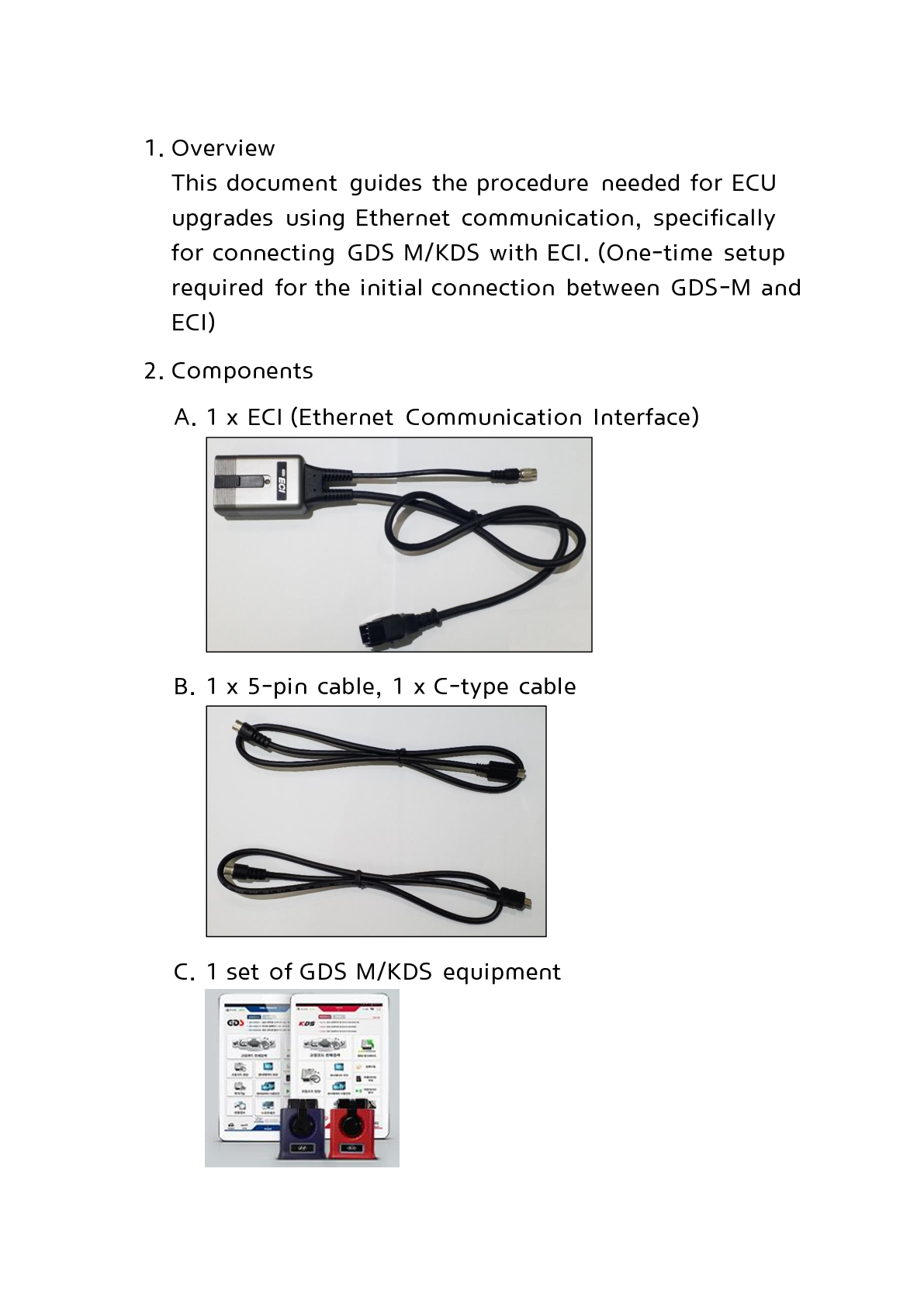

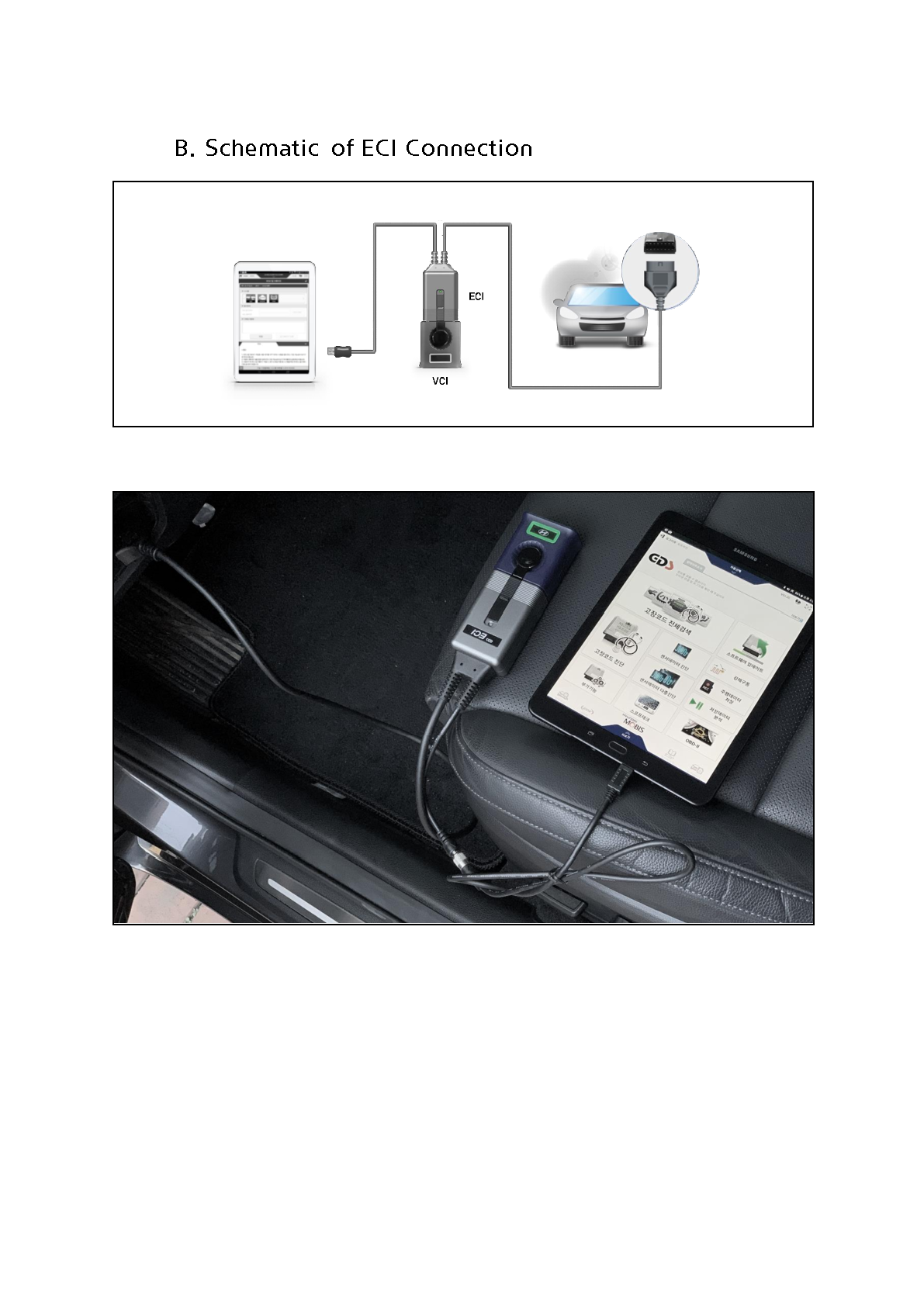

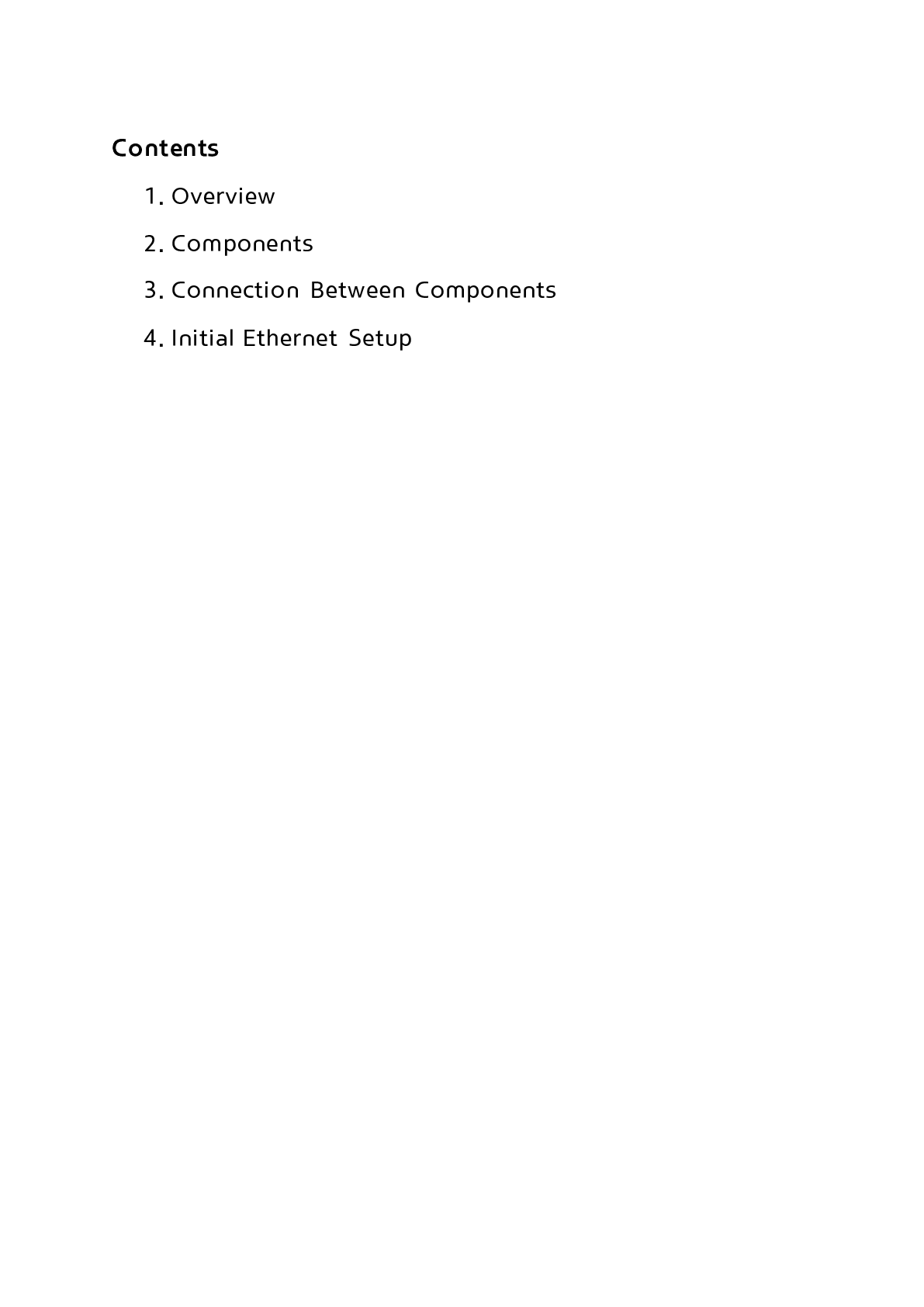

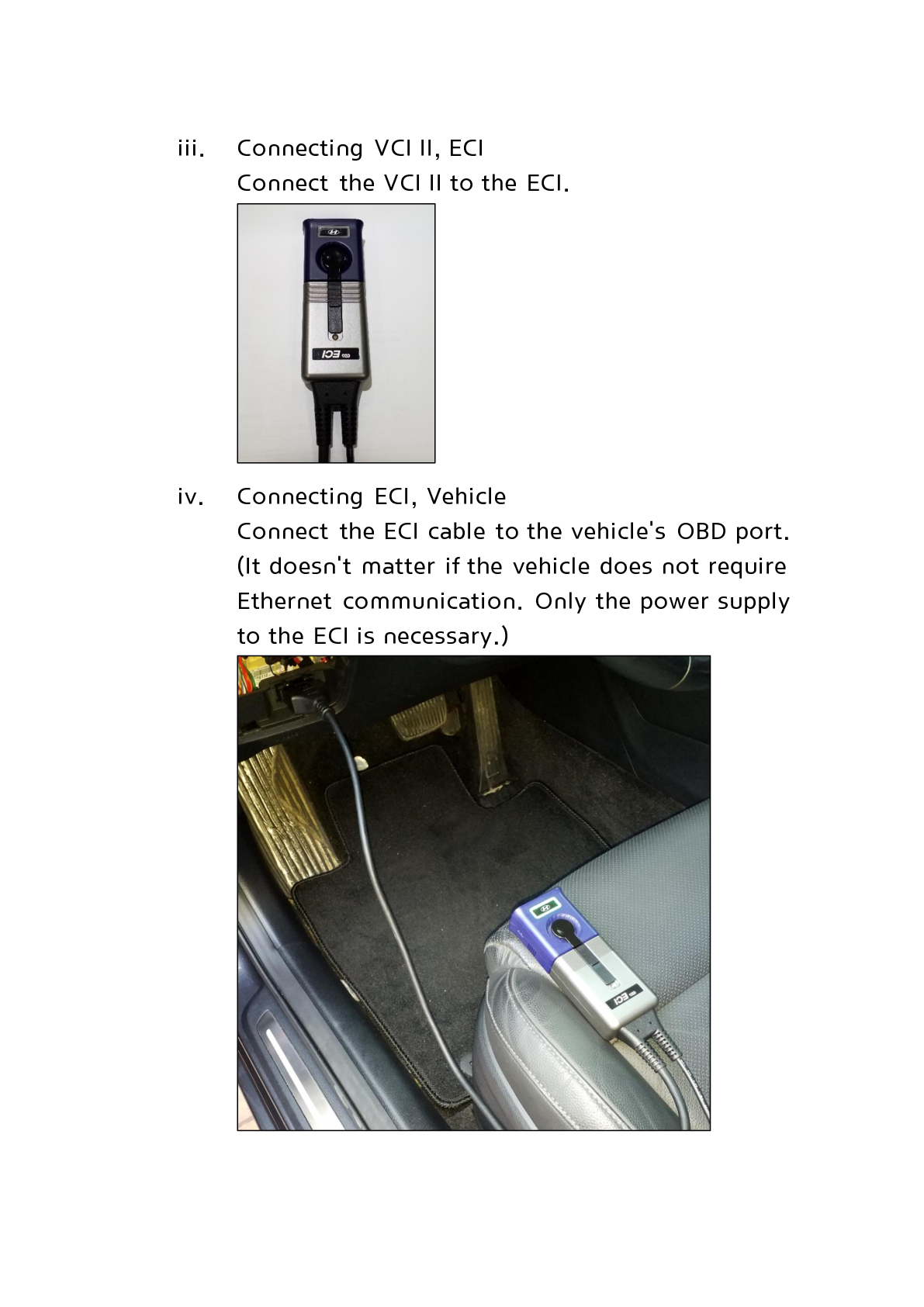

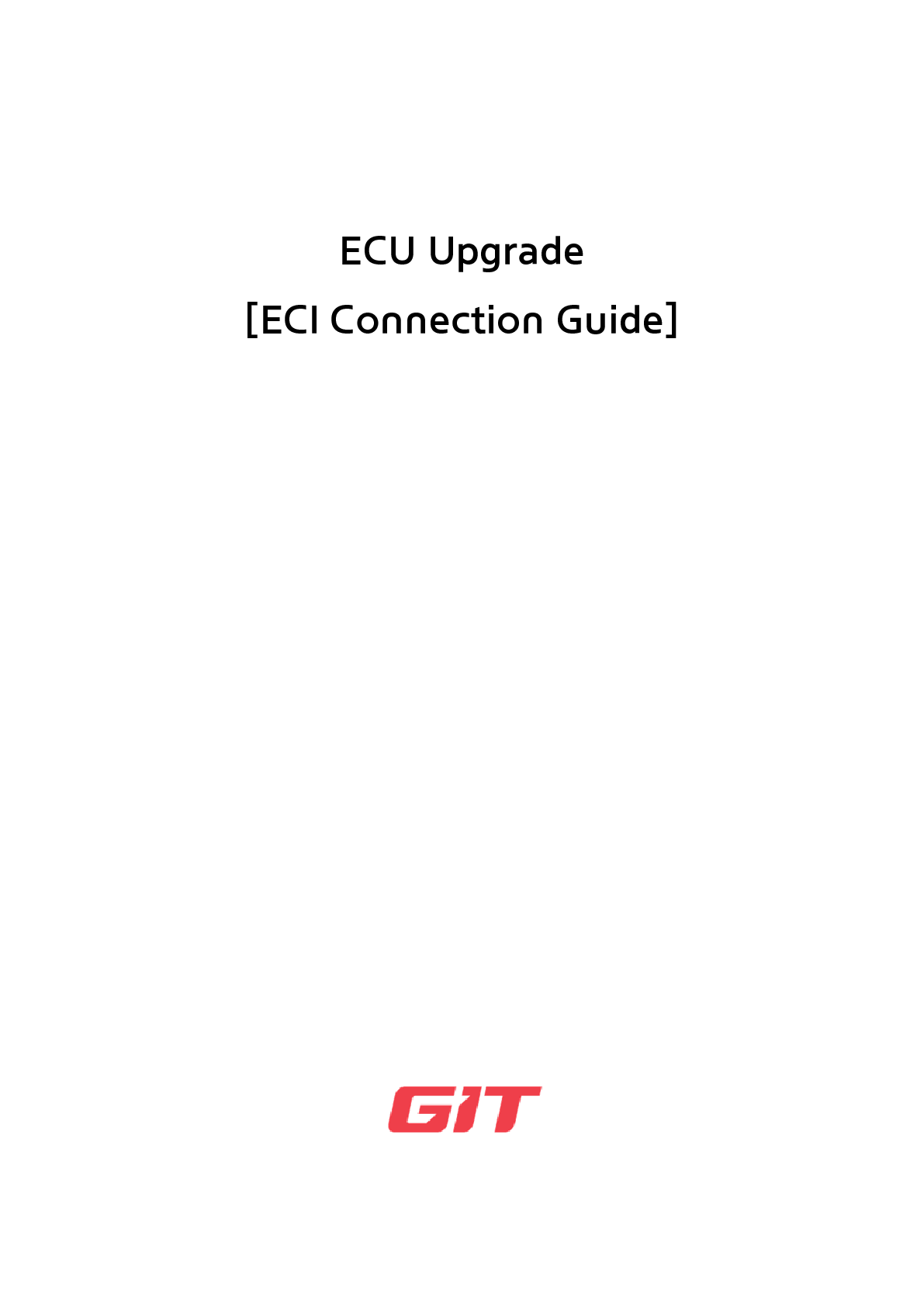

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_1.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_2.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_3.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_4.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_5.png

ECU UPGRADE - ECI CONNECTION GUIDE_20231201_6.png

4. Set the static IP on our tablet PC for Ethernet Communication as follow video.
